metalworking

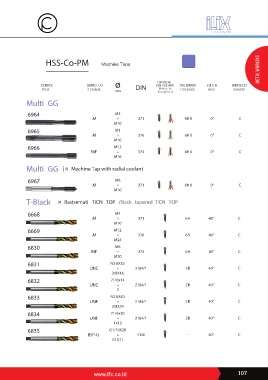

HSS-Co-PM Machine Taps

FORI CIECHI/
CODICE SIMBO LO ø DIN FORI PASSANTI TOLLERANZA ELI CA IMBOCCO
Blind ho le/
ITEM S YMBOL mm Through ho le TOLERANCE HELIX CHAMFER
Multi GG

6964 M3
M ÷ 371 6HX 0° C
M10
6965 M3
M ÷ 376 6HX 0° C
M10
6966 M12
MF ÷ 374 6HX 0° C
M16
Multi GG i Machine Tap with radial coolant

6967 M6
M ÷ 371 6HX 0° C
M10

T-Black Rastremati TiCN TOP / Back tapered TiCN TOP

6668 M4
M ÷ 371 - 6H 40° C
M10
6669 M12
M ÷ 376 - 6H 40° C
M24
6830 M6
MF ÷ 374 - 6H 40° C
M20
6831 N3 6X32
UNC ÷ 2184/1 - 2B 40° C
3/8X16
6832 7/16x14
UNC ÷ 2184/1 - 2B 40° C
2
6833 N3 6X40
UNF ÷ 2184/1 - 2B 40° C
3/8X24
6834 7/16x20
UNF ÷ 2184/1 - 2B 40° C
1x12
6835 G1/16X28
BSP-G ÷ 5156 - - 40° C
G1X11
