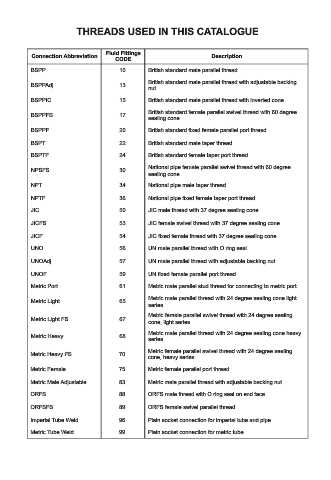

THREADS USED IN THIS CATALOGUE

Fluid Fittings
Connection Abbreviation Description
CODE
BSPP 10 British standard male parallel thread.

British standard male parallel thread with adjustable backing
BSPPAdj 13
nut
BSPPIC 15 British standard male parallel thread with inverted cone

British standard female parallel swivel thread with 60 degree
BSPPFS 17
sealing cone
BSPPF 20 British standard fixed female parallel port thread

BSPT 22 British standard male taper thread

BSPTF 24 British standard female taper port thread
National pipe female parallel swivel thread with 60 degree
NPSFS 30
sealing cone
NPT 34 National pipe male taper thread

NPTF 36 National pipe fixed female taper port thread

JIC 50 JIC male thread with 37 degree sealing cone

JICFS 53 JIC female swivel thread with 37 degree sealing cone

JICF 54 JIC fixed female thread with 37 degree sealing cone

UNO 56 UN male parallel thread with O ring seal
UNOAdj 57 UN male parallel thread with adjustable backing nut

UNOF 59 UN fixed female parallel port thread

Metric Port 61 Metric male parallel stud thread for connecting to metric port

Metric male parallel thread with 24 degree sealing cone light
Metric Light 65
series
Metric female parallel swivel thread with 24 degree sealing
Metric Light FS 67
cone, light series
Metric male parallel thread with 24 degree sealing cone heavy
Metric Heavy 68
series
Metric female parallel swivel thread with 24 degree sealing
Metric Heavy FS 70
cone, heavy series
Metric Female 75 Metric female parallel port thread

Metric Male Adjustable 83 Metric male parallel thread with adjustable backing nut

ORFS 88 ORFS male thread with O ring seal on end face

ORFSFS 89 ORFS female swivel parallel thread

Imperial Tube Weld 96 Plain socket connection for imperial tube and pipe

Metric Tube Weld 99 Plain socket connection for metric tube
