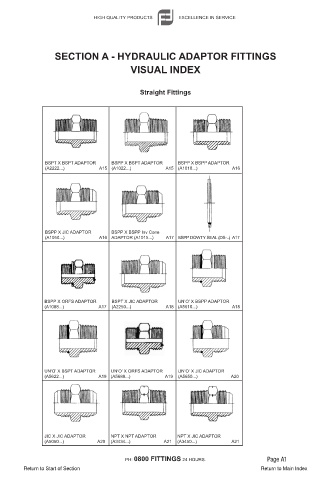

SECTION A - HYDRAULIC ADAPTOR FITTINGS
CMYK:
Grey Black RGB:
VISUAL INDEX Red Black
C: 0
C: 0

M: 0
R: 0
R: 75
M: 0

Y: 0 Y: 0 G: 75 G: 0
K: 70 K: 100 B: 75 B: 0
Straight Fittings
BSPT X BSPT ADAPTOR BSPP X BSPT ADAPTOR BSPP X BSPP ADAPTOR
(A2222...) A15 (A1022...) A15 (A1010...) A16
BSPP X JIC ADAPTOR BSPP X BSPP Inv Cone
(A1050...) A16 ADAPTOR (A1015...) A17 BSPP DOWTY SEAL (DS-..) A17
BSPP X ORFS ADAPTOR BSPT X JIC ADAPTOR UN‘O’ X BSPP ADAPTOR
(A1088...) A17 (A2250...) A18 (A5610...) A18

UN‘O’ X BSPT ADAPTOR UN‘O’ X ORFS ADAPTOR UN‘O’ X JIC ADAPTOR
(A5622...) A19 (A5688...) A19 (A5650...) A20

JIC X JIC ADAPTOR NPT X NPT ADAPTOR NPT X JIC ADAPTOR
(A5050...) A20 (A3434...) A21 (A3450...) A21

PH: 0800 FITTINGS 24 HOURS. Page A1
Return to Start of Section Return to Main Index
