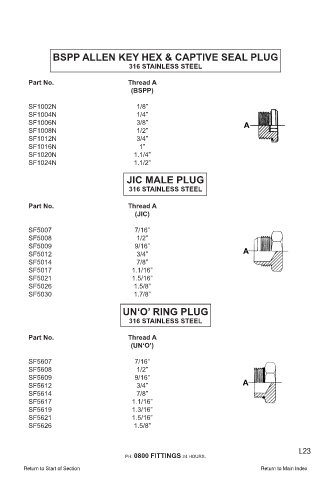

BSPP ALLEN KEY HEX & CAPTIVE SEAL PLUG
316 STAINLESS STEEL

Part No. Thread A
(BSPP)

SF1002N 1/8”
SF1004N 1/4”
SF1006N 3/8”
SF1008N 1/2”
SF1012N 3/4”
SF1016N 1”
SF1020N 1.1/4”
SF1024N 1.1/2”

JIC MALE PLUG

316 STAINLESS STEEL

Part No. Thread A
(JIC)

SF5007 7/16”
SF5008 1/2”
SF5009 9/16”
SF5012 3/4”
SF5014 7/8”
SF5017 1.1/16”
SF5021 1.5/16”
SF5026 1.5/8”
SF5030 1.7/8”

UN‘O’ RING PLUG

316 STAINLESS STEEL

Part No. Thread A
(UN‘O’)

SF5607 7/16”
SF5608 1/2”
SF5609 9/16”
SF5612 3/4”
SF5614 7/8”
SF5617 1.1/16”
SF5619 1.3/16”
SF5621 1.5/16”
SF5626 1.5/8”
