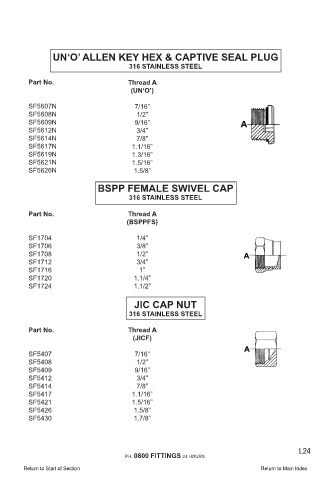

UN‘O’ ALLEN KEY HEX & CAPTIVE SEAL PLUG
316 STAINLESS STEEL

Part No. Thread A
(UN‘O’)

SF5607N 7/16”
SF5608N 1/2”
SF5609N 9/16”
SF5612N 3/4”
SF5614N 7/8”
SF5617N 1.1/16”
SF5619N 1.3/16”
SF5621N 1.5/16”
SF5626N 1.5/8”

BSPP FEMALE SWIVEL CAP

316 STAINLESS STEEL

Part No. Thread A
(BSPPFS)

SF1704 1/4”
SF1706 3/8”
SF1708 1/2”
SF1712 3/4”
SF1716 1”
SF1720 1.1/4”
SF1724 1.1/2”

JIC CAP NUT

316 STAINLESS STEEL

Part No. Thread A
(JICF)

SF5407 7/16”
SF5408 1/2”
SF5409 9/16”
SF5412 3/4”
SF5414 7/8”
SF5417 1.1/16”
SF5421 1.5/16”
SF5426 1.5/8”
SF5430 1.7/8”
