HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

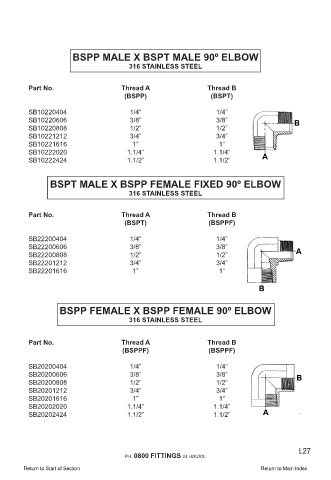

BSPP MALE X BSPT MALE 90º ELBOW
316 STAINLESS STEEL

Part No. Thread A Thread B
(BSPP) (BSPT)

SB10220404 1/4” 1/4”
SB10220606 3/8” 3/8”
SB10220808 1/2” 1/2”
SB10221212 3/4” 3/4”
SB10221616 1” 1”
SB10222020 1.1/4” 1.1/4”
SB10222424 1.1/2” 1.1/2”

BSPT MALE X BSPP FEMALE FIXED 90º ELBOW

316 STAINLESS STEEL

Part No. Thread A Thread B
(BSPT) (BSPPF)

SB22200404 1/4” 1/4”
SB22200606 3/8” 3/8”
SB22200808 1/2” 1/2”
SB22201212 3/4” 3/4”
SB22201616 1” 1”

BSPP FEMALE X BSPP FEMALE 90º ELBOW
316 STAINLESS STEEL

Part No. Thread A Thread B
(BSPPF) (BSPPF)

SB20200404 1/4” 1/4”
SB20200606 3/8” 3/8”
SB20200808 1/2” 1/2”
SB20201212 3/4” 3/4”
SB20201616 1” 1”
SB20202020 1.1/4” 1.1/4”
SB20202424 1.1/2” 1.1/2”

PH: 0800 FITTINGS 24 HOURS. L23
PAGE A23 L27
