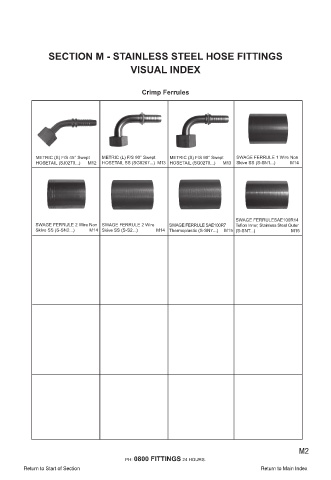

SECTION M - STAINLESS STEEL HOSE FITTINGS
VISUAL INDEX
Crimp Ferrules
METRIC (S) F/S 45° Swept METRIC (L) F/S 90° Swept METRIC (S) F/S 90° Swept SWAGE FERRULE 1 Wire Non
HOSETAIL (SJ0270...) M12 HOSETAIL SS (SG0267...) M13 HOSETAIL (SG0270...) M13 Skive SS (S-SN1...) M14
SWAGE FERRULESAE100R14
SWAGE FERRULE 2 Wire Non SWAGE FERRULE 2 Wire SWAGE FERRULE SAE100R7 Teflon Inner, Stainless Steel Outer
Skive SS (S-SN2...) M14 Skive SS (S-S2...) M14 Thermoplastic (S-SN7...) M15 (S-SNT...) M15
