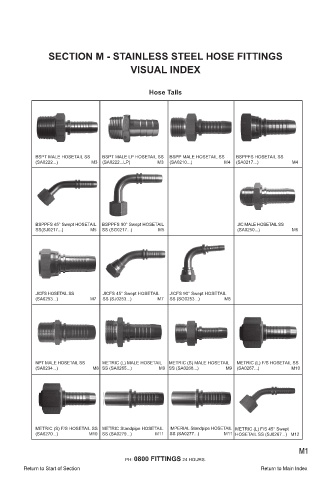

SECTION M - STAINLESS STEEL HOSE FITTINGS

VISUAL INDEX

Hose Tails

BSPT MALE HOSETAIL SS BSPT MALE LP HOSETAIL SS BSPP MALE HOSETAIL SS BSPPFS HOSETAIL SS
(SA0222...) M3 (SA0222...LP) M3 (SA0210...) M4 (SA0217...) M4

BSPPFS 45° Swept HOSETAIL BSPPFS 90° Swept HOSETAIL JIC MALE HOSETAIL SS
SS(SJ0217...) M5 SS (SG0217...) M5 (SA0250...) M6

JICFS HOSETAIL SS JICFS 45° Swept HOSETAIL JICFS 90° Swept HOSETAIL
(SA0253...) M7 SS (SJ0253...) M7 SS (SG0253...) M8

NPT MALE HOSETAIL SS METRIC (L) MALE HOSETAIL METRIC (S) MALE HOSETAIL METRIC (L) F/S HOSETAIL SS
(SA0234...) M8 SS (SA0265...) M9 SS (SA0268...) M9 (SA0267...) M10

METRIC (S) F/S HOSETAIL SS METRIC Standpipe HOSETAIL I M P E A I R a t S L n d p i p H e O S E T L I A METRIC (L) F/S 45° Swept
(SA0270...) M10 SS (SA0279...) M11 SS (SA0277...) M11 HOSETAIL SS (SJ0267...) M12

M1
