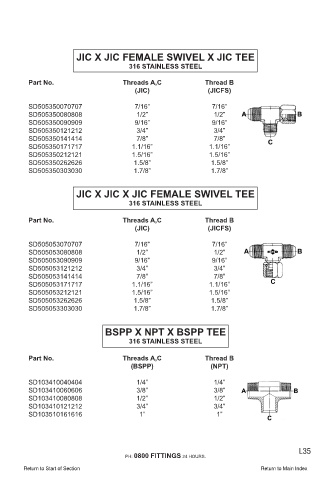

JIC X JIC FEMALE SWIVEL X JIC TEE
316 STAINLESS STEEL

Part No. Threads A,C Thread B
(JIC) (JICFS)

SD505350070707 7/16” 7/16”
SD505350080808 1/2” 1/2”
SD505350090909 9/16” 9/16”
SD505350121212 3/4” 3/4”
SD505350141414 7/8” 7/8”
SD505350171717 1.1/16” 1.1/16”
SD505350212121 1.5/16” 1.5/16”
SD505350262626 1.5/8” 1.5/8”
SD505350303030 1.7/8” 1.7/8”

JIC X JIC X JIC FEMALE SWIVEL TEE

316 STAINLESS STEEL

Part No. Threads A,C Thread B
(JIC) (JICFS)

SD505053070707 7/16” 7/16”
SD505053080808 1/2” 1/2”
SD505053090909 9/16” 9/16”
SD505053121212 3/4” 3/4”
SD505053141414 7/8” 7/8”
SD505053171717 1.1/16” 1.1/16”
SD505053212121 1.5/16” 1.5/16”
SD505053262626 1.5/8” 1.5/8”
SD505053303030 1.7/8” 1.7/8”

BSPP X NPT X BSPP TEE
316 STAINLESS STEEL

Part No. Threads A,C Thread B
(BSPP) (NPT)

SD103410040404 1/4” 1/4”
SD103410060606 3/8” 3/8”
SD103410080808 1/2” 1/2”
SD103410121212 3/4” 3/4”
SD103510161616 1” 1”
