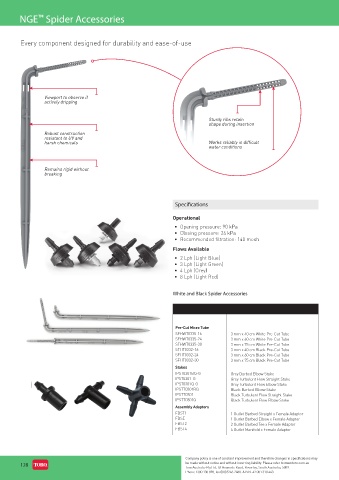

Page 138 - Toro Irrigation Product Catalogue August 2020

NGE Spider Accessories
™

Every component designed for durability and ease-of-use

Viewport to observe if
actively dripping

Sturdy ribs retain
shape during insertion
Robust construction
resistant to UV and
harsh chemicals Works reliably in difficult
water conditions

Remains rigid without
breaking

Specifications

Operational
• Opening pressure: 90 kPa
• Closing pressure: 24 kPa
• Recommended filtration: 140 mesh
Flows Available
• 2 Lph (Light Blue)
• 3 Lph (Light Green)
• 4 Lph (Grey)
• 8 Lph (Light Red)

White and Black Spider Accessories

Pre-Cut Micro Tube
SFHWT0335-16 3 mm x 40 cm White Pre-Cut Tube
SFHWT0335-24 3 mm x 60 cm White Pre-Cut Tube
SFHWT0335-30 3 mm x 75 cm White Pre-Cut Tube
SFHT0332-16 3 mm x 40 cm Black Pre-Cut Tube
SFHT0332-24 3 mm x 60 cm Black Pre-Cut Tube
SFHT0332-30 3 mm x 75 cm Black Pre-Cut Tube
Stakes
IPST0301BQ-G Grey Barbed Elbow Stake
IPST0301-G Grey Turbulent Flow Straight Stake
IPST0301Q-G Grey Turbulent Flow Elbow Stake
IPSTT0301BQ Black Barbed Elbow Stake
IPSTT0301 Black Turbulent Flow Straight Stake
IPSTT0301Q Black Turbulent Flow Elbow Stake
Assembly Adaptors
FBST1 1 Outlet Barbed Straight x Female Adaptor
FBSE 1 Outlet Barbed Elbow x Female Adaptor
FBST2 2 Outlet Barbed Tee x Female Adaptor
FBST4 4 Outlet Manifold x Female Adaptor
