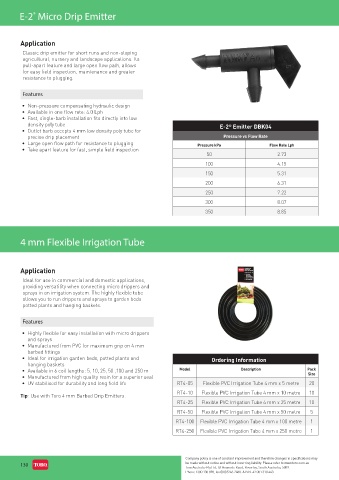

Page 140 - Toro Irrigation Product Catalogue August 2020

E-2 Micro Drip Emitter
®

Application

Classic drip emitter for short runs and non-sloping
agricultural, nursery and landscape applications. Its
pull-apart feature and large open flow path, allows
for easy field inspection, maintenance and greater
resistance to plugging.

Features
• Non-pressure compensating hydraulic design
• Available in one flow rate: 4.0 Lph
• Fast, single-barb installation fits directly into low
density poly tube E-2 Emitter DBK04
®
• Outlet barb accepts 4 mm low density poly tube for
precise drip placement Pressure vs Flow Rate
• Large open flow path for resistance to plugging Pressure kPa Flow Rate Lph
• Take apart feature for fast, simple field inspection
50 2.73
100 4.15
150 5.31
200 6.31

250 7.22
300 8.07
350 8.85

4 mm Flexible Irrigation Tube

Application

Ideal for use in commercial and domestic applications,
providing versatility when connecting micro drippers and
sprays in an irrigation system. The highly flexible tube
allows you to run drippers and sprays to garden beds
potted plants and hanging baskets.

Features
• Highly flexible for easy installation with micro drippers
and sprays
• Manufactured from PVC for maximum grip on 4 mm
barbed fittings
• Ideal for irrigation garden beds, potted plants and Ordering Information
hanging baskets
• Available in 6 coil lengths: 5, 10, 25, 50 ,100 and 250 m Model Description Pack
• Manufactured from high quality resin for a superior seal Size
• UV stabilised for durability and long field life RT4-05 Flexible PVC Irrigation Tube 4 mm x 5 metre 20
RT4-10 Flexible PVC Irrigation Tube 4 mm x 10 metre 10
Tip: Use with Toro 4 mm Barbed Drip Emitters.
RT4-25 Flexible PVC Irrigation Tube 4 mm x 25 metre 10
RT4-50 Flexible PVC Irrigation Tube 4 mm x 50 metre 5
RT4-100 Flexible PVC Irrigation Tube 4 mm x 100 metre 1
RT4-250 Flexible PVC Irrigation Tube 4 mm x 250 metre 1

Company policy is one of constant improvement and therefore changes in specifications may
130 be made without notice and without incurring liability. Please refer to www.toro.com.au
Toro Australia Pty Ltd, 53 Howards Road, Beverley, South Australia, 5009.
Phone 1300 130 898, fax (08) 8243 2488. A.B.N. 47 001 310 443
