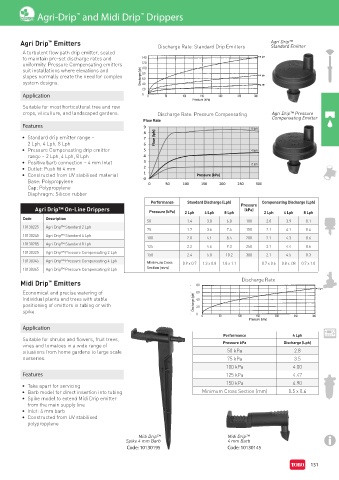

Page 141 - Toro Irrigation Product Catalogue August 2020

Agri-Drip and Midi Drip Drippers
™
™

Agri Drip Emitters Agri Drip™
™
Discharge Rate: Standard Drip Emitters Standard Emitter
A turbulent flow path drip emitter, sealed
to maintain pre-set discharge rates and 14.0
uniformity. Pressure Compensating emitters 12.0
suit installations where elevations and 10.0
slopes normally create the need for complex Discharge (lph) 8.0
6.0
system designs. 4.0
2.0
Application 0 0 50 100 150 200 250 300
Pressure (kPa)
Suitable for most horticultural tree and row
crops, viticulture, and landscaped gardens. Discharge Rate: Pressure Compensating Agri Drip™ Pressure
Compensating Emitter
Features
• Standard drip emitter range –
2 Lph, 4 Lph, 8 Lph
• Pressure Compensating drip emitter
range – 2 Lph, 4 Lph, 8 Lph
• Positive barb connection – 4 mm Inlet
• Outlet: Push fit 4 mm
• Constructed from UV stabilised material
Base: Polypropylene
Cap: Polypropylene
Diaphragm: Silicon rubber
Performance Standard Discharge (Lph) Pressure Compensating Discharge (Lph)
Agri Drip™ On-Line Drippers Pressure (kPa) 2 Lph 4 Lph 8 Lph (kPa) 2 Lph 4 Lph 8 Lph
Code Description
50 1.4 3.0 6.0 100 2.0 3.9 8.1
10130225 Agri Drip™ Standard 2 Lph
75 1.7 3.6 7.4 150 2.1 4.1 8.4
10130245 Agri Drip™ Standard 4 Lph
100 2.0 4.1 8.4 200 2.1 4.3 8.6
10130285 Agri Drip™ Standard 8 Lph
125 2.2 4.6 9.3 250 2.1 4.4 8.6
10130325 Agri Drip™ Pressure Compensating 2 Lph
150 2.4 5.0 10.2 300 2.1 4.5 8.3
10130345 Agri Drip™ Pressure Compensating 4 Lph Minimum Cross 0.9 x 0.7 1.3 x 0.8 1.8 x 1.1 0.7 x 0.6 0.8 x .08 0.7 x 1.0
10130365 Agri Drip™ Pressure Compensating 8 Lph Section (mm)

Midi Drip Emitters 8.0 Discharge Rate
™
Economical and precise watering of 6.0
individual plants and trees with stable 4.0
positioning of emitters in tubing or with Discharge (lph) 2.0
spike.
0 0 50 100 150 200 250 300
Pressure (kPa)
Application
Performance 4 Lph
Suitable for shrubs and flowers, fruit trees,
vines and tomatoes in a wide range of Pressure kPa Discharge (Lph)
situations from home gardens to large scale 50 kPa 2.8
nurseries. 75 kPa 3.5
100 kPa 4.00
Features 125 kPa 4.47
150 kPa 4.90
• Take apart for servicing
• Barb model for direct insertion into tubing Minimum Cross Section (mm) 0.5 x 0.6
• Spike model to extend Midi Drip emitter
from the main supply line
• Inlet: 4 mm barb
• Constructed from UV stabilised
polypropylene

Midi Drip™ Midi Drip™
Spike 4 mm Barb 4 mm Barb
Code: 10130195 Code: 10130145
