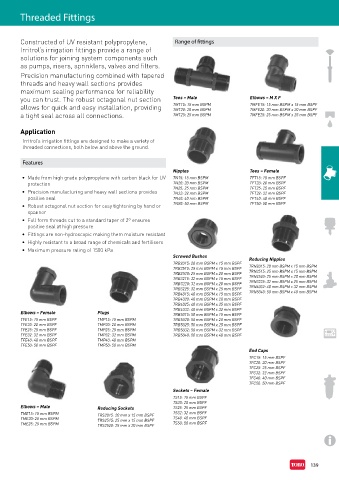

Page 151 - Toro Irrigation Product Catalogue August 2020

Threaded Fittings

Constructed of UV resistant polypropylene, Range of fittings
Irritrol’s irrigation fittings provide a range of
solutions for joining system components such
as pumps, risers, sprinklers, valves and filters.
Precision manufacturing combined with tapered
threads and heavy wall sections provides
maximum sealing performance for reliability
you can trust. The robust octagonal nut section Tees – Male Elbows – M X F
allows for quick and easy installation, providing TMT15: 15 mm BSPM TMFE15: 15 mm BSPM x 15 mm BSPF
TMT20: 20 mm BSPM
TMFE20: 20 mm BSPM x 20 mm BSPF
a tight seal across all connections. TMT25: 25 mm BSPM TMFE25: 25 mm BSPM x 25 mm BSPF
Application
Irritrol’s irrigation fittings are designed to make a variety of
threaded connections, both below and above the ground.

Features
Nipples Tees – Female
• Made from high grade polypropylene with carbon black for UV TN15: 15 mm BSPM TFT15: 15 mm BSPF
protection TN20: 20 mm BSPM TFT20: 20 mm BSPF
TN25: 25 mm BSPM TFT25: 25 mm BSPF
• Precision manufacturing and heavy wall sections provides TN32: 32 mm BSPM TFT32: 32 mm BSPF
positive seal TN40: 40 mm BSPM TFT40: 40 mm BSPF
TN50: 50 mm BSPM TFT50: 50 mm BSPF
• Robust octagonal nut section for easy tightening by hand or
spanner
• Full form threads cut to a standard taper of 2º ensures
positive seal at high pressure
• Fittings are non-hydroscopic making them moisture resistant
• Highly resistant to a broad range of chemicals and fertilisers
• Maximum pressure rating of 1500 kPa
Screwed Bushes Reducing Nipples
TRB2015: 20 mm BSPM x 15 mm BSPF
TRB2515: 25 mm BSPM x 15 mm BSPF TRN2015: 20 mm BSPM x 15 mm BSPM
TRB2520: 25 mm BSPM x 20 mm BSPF TRN2515: 25 mm BSPM x 15 mm BSPM
TRB3215: 32 mm BSPM x 15 mm BSPF TRN2520: 25 mm BSPM x 20 mm BSPM
TRB3220: 32 mm BSPM x 20 mm BSPF TRN3225: 32 mm BSPM x 25 mm BSPM
TRB3225: 32 mm BSPM x 25 mm BSPF TRN4032: 40 mm BSPM x 32 mm BSPM
TRB4015: 40 mm BSPM x 15 mm BSPF TRN5040: 50 mm BSPM x 40 mm BSPM
TRB4020: 40 mm BSPM x 20 mm BSPF
TRB4025: 40 mm BSPM x 25 mm BSPF
TRB4032: 40 mm BSPM x 32 mm BSPF
Elbows – Female Plugs TRB5015: 50 mm BSPM x 15 mm BSPF
TFE15: 15 mm BSPF TMP15: 15 mm BSPM TRB5020: 50 mm BSPM x 20 mm BSPF
TFE20: 20 mm BSPF TMP20: 20 mm BSPM TRB5025: 50 mm BSPM x 25 mm BSPF
TFE25: 25 mm BSPF TMP25: 25 mm BSPM TRB5032: 50 mm BSPM x 32 mm BSPF
TFE32: 32 mm BSPF TMP32: 32 mm BSPM TRB5040: 50 mm BSPM x 40 mm BSPF
TFE40: 40 mm BSPF TMP40: 40 mm BSPM
TFE50: 50 mm BSPF TMP50: 50 mm BSPM
End Caps
TFC15: 15 mm BSPF
TFC20: 20 mm BSPF
TFC25: 25 mm BSPF
TFC32: 32 mm BSPF
TFC40: 40 mm BSPF
TFC50: 50 mm BSPF
Sockets – Female
TS15: 15 mm BSPF
TS20: 20 mm BSPF
Elbows – Male Reducing Sockets TS25: 25 mm BSPF
TME15: 15 mm BSPM TRS2015: 20 mm x 15 mm BSPF TS32: 32 mm BSPF
TME20: 20 mm BSPM TRS2515: 25 mm x 15 mm BSPF TS40: 40 mm BSPF
TME25: 25 mm BSPM TRS2520: 25 mm x 20 mm BSPF TS50: 50 mm BSPF
