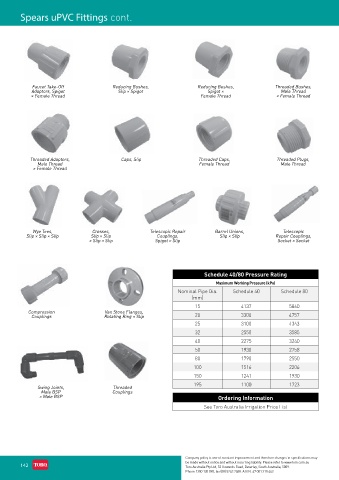

Spears uPVC Fittings cont.

Faucet Take-Off Reducing Bushes, Reducing Bushes, Threaded Bushes,
Adaptors, Spigot Slip × Spigot Spigot × Male Thread
× Female Thread Female Thread × Female Thread

Threaded Adaptors, Caps, Slip Threaded Caps, Threaded Plugs,
Male Thread Female Thread Male Thread
× Female Thread

Wye Tees, Crosses, Telescopic Repair Barrel Unions, Telescopic
Slip × Slip × Slip Slip × Slip Couplings, Slip × Slip Repair Couplings,
× Slip × Slip Spigot × Slip Socket × Socket

Schedule 40/80 Pressure Rating

Maximum Working Pressure (kPa)
Nominal Pipe Dia. Schedule 40 Schedule 80
(mm)
15 4137 5860
Compression Van Stone Flanges,
Couplings Rotating Ring × Slip 20 3300 4757
25 3100 4343
32 2550 3585
40 2275 3240
50 1930 2758
80 1790 2550
100 1516 2206
150 1241 1930
195 1100 1723
Swing Joints, Threaded
Male BSP Couplings
× Male BSP Ordering Information
See Toro Australia Irrigation Price List
