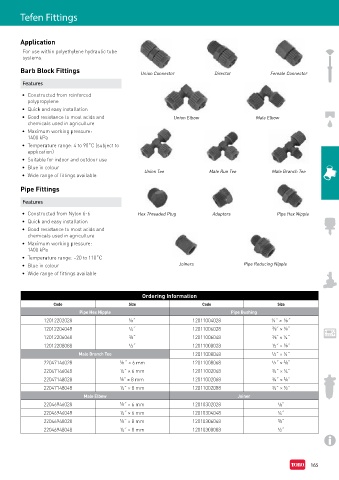

Page 177 - Toro Irrigation Product Catalogue August 2020
P. 177
Tefen Fittings
Application
For use within polyethylene hydraulic tube
systems.
Barb Block Fittings Union Connector Director Female Connector
Features
• Constructed from reinforced
polypropylene
• Quick and easy installation
• Good resistance to most acids and Union Elbow Male Elbow
chemicals used in agriculture
• Maximum working pressure:
1400 kPa
• Temperature range: 4 to 90˚C (subject to
application)
• Suitable for indoor and outdoor use
• Blue in colour
Union Tee Male Run Tee Male Branch Tee
• Wide range of fittings available
Pipe Fittings
Features
• Constructed from Nylon 6-6 Hex Threaded Plug Adaptors Pipe Hex Nipple
• Quick and easy installation
• Good resistance to most acids and
chemicals used in agriculture
• Maximum working pressure:
1400 kPa
• Temperature range: –20 to 110˚C
• Blue in colour Joiners Pipe Reducing Nipple
• Wide range of fittings available
Ordering Information
Code Size Code Size
Pipe Hex Nipple Pipe Bushing
12012202028 ˝ 12011004028 ¼˝ × ˝
12012204048 ¼˝ 12011006028 ˝ × ˝
12012206068 ˝ 12011006048 ˝ × ¼˝
12012208088 ½˝ 12011008028 ½˝ × ˝
Male Branch Tee 12011008048 ½˝ × ¼˝
22047146028 ˝ × 6 mm 12011008068 ½˝ × ˝
22047146048 ¼˝ × 6 mm 12011002048 ¾˝ × ¼˝
22047148028 ˝ × 8 mm 12011002068 ¾˝ × ˝
22047148048 ¼˝ × 8 mm 12011002088 ¾˝ × ½˝
Male Elbow Joiner
22046946028 ˝ × 6 mm 12010302028 ˝
22046946048 ¼˝ × 6 mm 12010304048 ¼˝
22046948028 ˝ × 8 mm 12010306068 ˝
22046948048 ¼˝ × 8 mm 12010308088 ½˝
