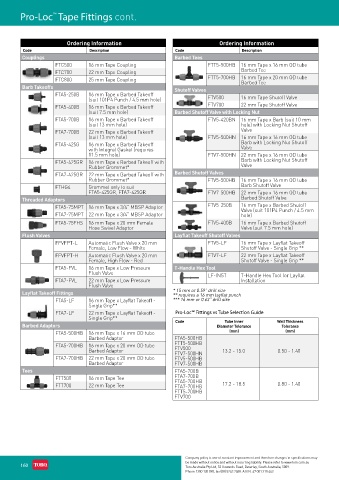

Page 172 - Toro Irrigation Product Catalogue August 2020
P. 172
Pro-Loc Tape Fittings cont.
™
Ordering Information Ordering Information
Code Description Code Description
Couplings Barbed Tees
FTC500 16 mm Tape Coupling FTT5-500HB 16 mm Tape x 16 mm OD tube
FTC700 22 mm Tape Coupling Barbed Tee
FTC800 25 mm Tape Coupling FTT5-700HB 16 mm Tape x 20 mm OD tube
Barbed Tee
Barb Takeoffs Shutoff Valves
FTA5-250B 16 mm Tape x Barbed Takeoff
(suit 101P4 Punch / 4.5 mm hole) FTV500 16 mm Tape Shutoff Valve
FTA5-400B 16 mm Tape x Barbed Takeoff FTV700 22 mm Tape Shutoff Valve
(suit 7.5 mm hole) Barbed Shutoff Valve with Locking Nut
FTA5-700B 16 mm Tape x Barbed Takeoff FTV5-420BN 16 mm Tape x Barb (suit 10 mm
(suit 13 mm hole) hole) with Locking Nut Shutoff
FTA7-700B 22 mm Tape x Barbed Takeoff Valve
(suit 13 mm hole) FTV5-500HN 16 mm Tape x 16 mm OD tube
FTA5-425G 16 mm Tape x Barbed Takeoff Barb with Locking Nut Shutoff
with Integral Gasket (requires Valve
11.5 mm hole) FTV7-500HN 22 mm Tape x 16 mm OD tube
FTA5-425GR 16 mm Tape x Barbed Takeoff with Barb with Locking Nut Shutoff
Rubber Grommet* Valve
FTA7-425GR 22 mm Tape x Barbed Takeoff with Barbed Shutoff Valves
Rubber Grommet* FTV5-500HB 16 mm Tape x 16 mm OD tube
FTHG4 Grommet only to suit Barb Shutoff Valve
FTA5-425GR, FTA7-425GR FTV7-500HB 22 mm Tape x 16 mm OD tube
Threaded Adaptors Barbed Shutoff Valve
FTA5-75MPT 16 mm Tape x 3/4” MBSP Adaptor FTV5-250B 16 mm Tape x Barbed Shutoff
Valve (suit 101P4 Punch / 4.5 mm
FTA7-75MPT 22 mm Tape x 3/4” MBSP Adaptor hole)
FTA5-75FHS 16 mm Tape x 20 mm Female FTV5-400B 16 mm Tape x Barbed Shutoff
Hose Swivel Adaptor Valve (suit 7.5 mm hole)
Flush Valves Layflat Takeoff Shutoff Valves
FFVFPT-L Automatic Flush Valve x 20 mm FTV5-LF 16 mm Tape x Layflat Takeoff
Female, Low Flow - White Shutoff Valve - Single Grip **
FFVFPT-H Automatic Flush Valve x 20 mm FTV7-LF 22 mm Tape x Layflat Takeoff
Female, High Flow - Red Shutoff Valve - Single Grip **
FTA5-FVL 16 mm Tape x Low Pressure T-Handle Hex Tool
Flush Valve LF-INST T-Handle Hex Tool for Layflat
FTA7-FVL 22 mm Tape x Low Pressure Installation
Flush Valve
Layflat Takeoff Fittings * 15 mm or 0.59” drill size
** requires a 16 mm layflat punch
FTA5-LF 16 mm Tape x Layflat Takeoff - *** 16 mm or 0.63” drill size
Single Grip**
FTA7-LF 22 mm Tape x Layflat Takeoff - Pro-Loc™ Fittings vs Tube Selection Guide
Single Grip**
Tube Inner
Barbed Adaptors Code Diameter Tolerance Wall Thickness
Tolerance
FTA5-500HB 16 mm Tape x 16 mm OD tube (mm) (mm)
Barbed Adaptor FTA5-500HB
FTA5-700HB 16 mm Tape x 20 mm OD tube FTT5-500HB
Barbed Adaptor FTV500 13.2 - 15.0 0.50 - 1.40
FTV7-500HN
FTA7-700HB 22 mm Tape x 20 mm OD tube FTV5-500HB
Barbed Adaptor FTV7-500HB
Tees FTA5-700B
FTT500 16 mm Tape Tee FTA7-700B
FTA5-700HB
FTT700 22 mm Tape Tee FTA7-700HB 17.2 - 18.5 0.80 - 1.40
FTT5-700HB
FTV700
Company policy is one of constant improvement and therefore changes in specifications may
160 be made without notice and without incurring liability. Please refer to www.toro.com.au
