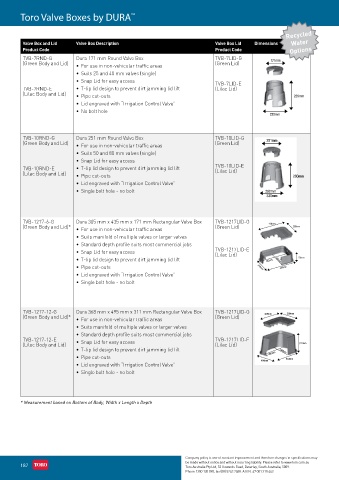

Page 201 - Toro Irrigation Product Catalogue August 2020

Toro Valve Boxes by DURA ™

Recycled

Valve Box and Lid Valve Box Description Valve Box Lid Dimensions Water
Product Code Product Code Options
TVB-7RND-G Dura 171 mm Round Valve Box TVB-7LID-G
(Green Body and Lid) • For use in non-vehicular traffic areas (Green Lid) 171mm
• Suits 25 and 40 mm valves (single)
• Snap Lid for easy access
TVB-7LID-E
TVB-7RND-E • T-lip lid design to prevent dirt jamming lid lift (Lilac Lid)
(Lilac Body and Lid) • Pipe cut-outs 229mm
• Lid engraved with “Irrigation Control Valve”
• No bolt hole
235mm

TVB-10RND-G Dura 251 mm Round Valve Box TVB-10LID-G
(Green Body and Lid) • For use in non-vehicular traffic areas (Green Lid) 251mm
• Suits 50 and 80 mm valves (single)
• Snap Lid for easy access
TVB-10LID-E
TVB-10RND-E • T-lip lid design to prevent dirt jamming lid lift (Lilac Lid)
(Lilac Body and Lid) • Pipe cut-outs 260mm

• Lid engraved with “Irrigation Control Valve”
• Single bolt hole - no bolt 292mm
330mm

TVB-1217-6-G Dura 305 mm x 435 mm x 171 mm Rectangular Valve Box TVB-1217LID-G
(Green Body and Lid)* • For use in non-vehicular traffic areas (Green Lid) 429mm 299mm
• Suits manifold of multiple valves or larger valves
• Standard depth profile suits most commercial jobs
• Snap Lid for easy access TVB-1217LID-E
(Lilac Lid)
• T-lip lid design to prevent dirt jamming lid lift 435mm 305mm 171mm
• Pipe cut-outs 349mm 476mm
• Lid engraved with “Irrigation Control Valve”
• Single bolt hole - no bolt

TVB-1217-12-G Dura 368 mm x 495 mm x 311 mm Rectangular Valve Box TVB-1217LID-G 299mm
(Green Body and Lid)* • For use in non-vehicular traffic areas (Green Lid) 429mm
• Suits manifold of multiple valves or larger valves
• Standard depth profile suits most commercial jobs
TVB-1217-12-E • Snap Lid for easy access TVB-1217LID-E
(Lilac Body and Lid) (Lilac Lid) 311mm
• T-lip lid design to prevent dirt jamming lid lift 368mm
• Pipe cut-outs 495mm
406mm 533mm
• Lid engraved with “Irrigation Control Valve”
• Single bolt hole - no bolt

* Measurement based on Bottom of Body, Width x Length x Depth
