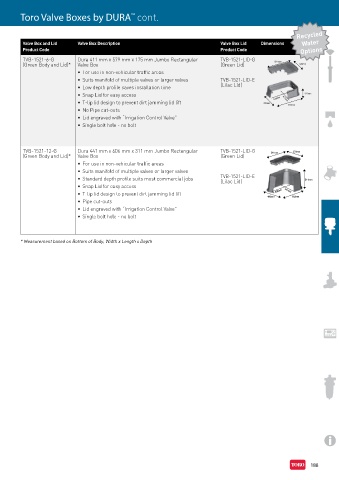

Page 202 - Toro Irrigation Product Catalogue August 2020
P. 202

Toro Valve Boxes by DURA  cont.
                                               ™

                                                                                                         Recycled

         Valve Box and Lid   Valve Box Description                            Valve Box Lid   Dimensions   Water
         Product Code                                                         Product Code                 Options
         TVB-1521-6-G       Dura 411 mm x 579 mm x 175 mm Jumbo Rectangular    TVB-1521-LID-G
         (Green Body and Lid)*  Valve Box                                     (Green Lid)        541mm    378mm
                            •  For use in non-vehicular traffic areas
                            •  Suits manifold of multiple valves or larger valves  TVB-1521-LID-E
                            •  Low depth profile saves installation time      (Lilac Lid)
                            •  Snap Lid for easy access                                                     175mm
                            •  T-lip lid design to prevent dirt jamming lid lift             452mm  579mm  411mm 618mm
                            •  No Pipe cut-outs
                            •  Lid engraved with “Irrigation Control Valve”
                            •  Single bolt hole - no bolt



         TVB-1521-12-G      Dura 441 mm x 606 mm x 311 mm Jumbo Rectangular    TVB-1521-LID-G    541mm  378mm
         (Green Body and Lid)*  Valve Box                                     (Green Lid)
                            •  For use in non-vehicular traffic areas
                            •  Suits manifold of multiple valves or larger valves
                            •  Standard depth profile suits most commercial jobs  TVB-1521-LID-E            311mm
                                                                              (Lilac Lid)
                            •  Snap Lid for easy access
                            •  T-lip lid design to prevent dirt jamming lid lift                  606mm  441mm
                                                                                               486mm    652mm
                            •  Pipe cut-outs
                            •  Lid engraved with “Irrigation Control Valve”
                            •  Single bolt hole - no bolt



        * Measurement based on Bottom of Body, Width x Length x Depth
