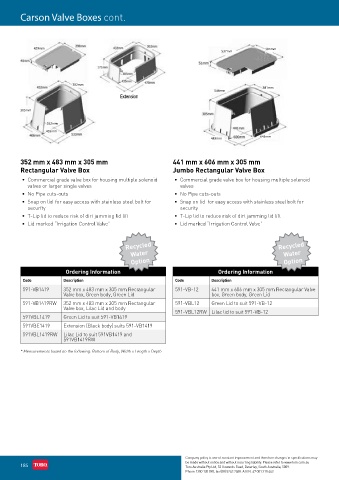

Page 199 - Toro Irrigation Product Catalogue August 2020

Carson Valve Boxes cont.

429mm 381mm
537mm

302mm
381mm
546mm
Extension

305mm

352mm
483mm
645mm
483mm

352 mm x 483 mm x 305 mm 441 mm x 606 mm x 305 mm
Rectangular Valve Box Jumbo Rectangular Valve Box

• Commercial grade valve box for housing multiple solenoid • Commercial grade valve box for housing multiple solenoid
valves or larger single valves valves
• No Pipe cuts-outs • No Pipe cuts-outs
• Snap on lid for easy access with stainless steel bolt for • Snap on lid for easy access with stainless steel bolt for
security security
• T-Lip lid to reduce risk of dirt jamming lid lift • T-Lip lid to reduce risk of dirt jamming lid lift
• Lid marked “Irrigation Control Valve” • Lid marked “Irrigation Control Valve”

Recycled Recycled
Water Water
Option Option

Ordering Information Ordering Information
Code Description Code Description
591-VB1419 352 mm x 483 mm x 305 mm Rectangular 591-VB-12 441 mm x 606 mm x 305 mm Rectangular Valve
Valve box, Green body, Green Lid box, Green body, Green Lid
591-VB1419RW 352 mm x 483 mm x 305 mm Rectangular 591-VBL12 Green Lid to suit 591-VB-12
Valve box, Lilac Lid and body
591-VBL12RW Lilac lid to suit 591-VB-12
591VBL1419 Green Lid to suit 591-VB1419
591VBE1419 Extension (Black body) suits 591-VB1419
591VBL1419RW Lilac Lid to suit 591VB1419 and
591VB1419RW
* Measurements based on the following: Bottom of Body, Width x Length x Depth
