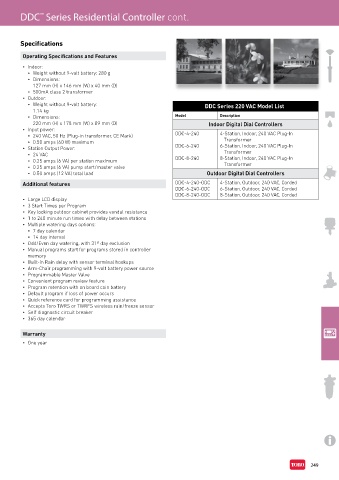

Page 267 - Toro Irrigation Product Catalogue August 2020

DDC Series Residential Controller cont.
™

Specifications

Operating Specifications and Features
• Indoor:
• Weight without 9-volt battery: 280 g
• Dimensions:
127 mm (H) x 146 mm (W) x 40 mm (D)
• 500mA class 2 transformer
• Outdoor:
• Weight without 9-volt battery: DDC Series 220 VAC Model List
1.14 kg
• Dimensions: Model Description
220 mm (H) x 178 mm (W) x 89 mm (D) Indoor Digital Dial Controllers
• Input power:
• 240 VAC, 50 Hz (Plug-in transformer, CE Mark) DDC-4-240 4-Station, Indoor, 240 VAC Plug-In
• 0.50 amps (60 W) maximum Transformer
• Station Output Power: DDC-6-240 6-Station, Indoor, 240 VAC Plug-In
• 24 VAC Transformer
• 0.25 amps (6 VA) per station maximum DDC-8-240 8-Station, Indoor, 240 VAC Plug-In
• 0.25 amps (6 VA) pump start/master valve Transformer
• 0.50 amps (12 VA) total load Outdoor Digital Dial Controllers

Additional features DDC-4-240-ODC 4-Station, Outdoor, 240 VAC, Corded
DDC-6-240-ODC 6-Station, Outdoor, 240 VAC, Corded
DDC-8-240-ODC 8-Station, Outdoor, 240 VAC, Corded
• Large LCD display
• 3 Start Times per Program
• Key locking outdoor cabinet provides vandal resistance
• 1 to 240 minute run times with delay between stations
• Multiple watering days options:
• 7 day calendar
• 14 day interval
• Odd/Even day watering, with 31 day exclusion
st
• Manual programs start for programs stored in controller
memory
• Built-in Rain delay with sensor terminal hookups
• Arm-Chair programming with 9-volt battery power source
• Programmable Master Valve
• Convenient program review feature
• Program retention with on board coin battery
• Default program if loss of power occurs
• Quick reference card for programming assistance
• Accepts Toro TWRS or TWRFS wireless rain/freeze sensor
• Self diagnostic circuit breaker
• 365 day calendar

Warranty
• One year
