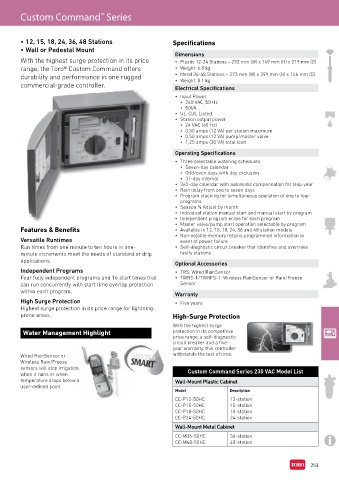

Page 271 - Toro Irrigation Product Catalogue August 2020

Custom Command Series
™

• 12, 15, 18, 24, 36, 48 Stations Specifications
• Wall or Pedestal Mount
Dimensions
With the highest surge protection in its price • Plastic 12-24 Stations – 292 mm (W) x 149 mm (H) x 219 mm (D)
range, the Toro® Custom Command offers • Weight: 6.8 kg
durability and performance in one rugged • Metal 36-48 Stations – 273 mm (W) x 399 mm (H) x 146 mm (D)
• Weight: 8.1 kg
commercial-grade controller.
Electrical Specifications
• Input Power
• 240 VAC, 50 Hz
• 50VA
• UL, CUL Listed
• Station output power
• 24 VAC (60 Hz)
• 0,50 amps (12 VA) per station maximum
• 0,50 amps (12 VA) pump/master valve
• 1,25 amps (30 VA) total load

Operating Specifications
• Three selectable watering schedules:
• Seven-day calendar
• Odd/even days with day exclusion
• 31-day interval
• 365-day calendar with automatic compensation for leap year
• Rain delay from one to seven days
• Program stacking for simultaneous operation of one to four
programs
• Season % Adjust by month
• Individual station manual start and manual start by program
• Independent program erase for each program
• Master valve/pump start operation selectable by program
Features & Benefits • Available in 12, 15, 18, 24, 36 and 48 station models
• Non-volatile memory retains programmed information in
Versatile Runtimes event of power failure
Run times from one minute to ten hours in one- • Self-diagnostic circuit breaker that identifies and overrides
minute increments meet the needs of standard or drip faulty stations
applications.
Optional Accessories
Independent Programs • TRS: Wired RainSensor
Four fully independent programs and 16 start times that • TWRS-1/TWRFS-1: Wireless RainSensor or Rain/Freeze
can run concurrently with start time overlap protection Sensor
within each program.
Warranty
High Surge Protection • Five years
Highest surge protection in its price range for lightning-
prone areas. High-Surge Protection

With the highest surge
Water Management Highlight protection in its competitive
price range, a self-diagnostic
circuit breaker and a five-
year warranty, this controller
Wired RainSensor or withstands the test of time.
Wireless Rain/Freeze
sensors will stop irrigation
when it rains or when Custom Command Series 230 VAC Model List
temperature drops below a Wall-Mount Plastic Cabinet
user-defined point.
Model Description
CC-P12-50HC 12-station
CC-P15-50HC 15-station
CC-P18-50HC 18-station
CC-P24-50HC 24-station
Wall-Mount Metal Cabinet
CC-M36-50HC 36-station
CC-M48-50HC 48-station

253
