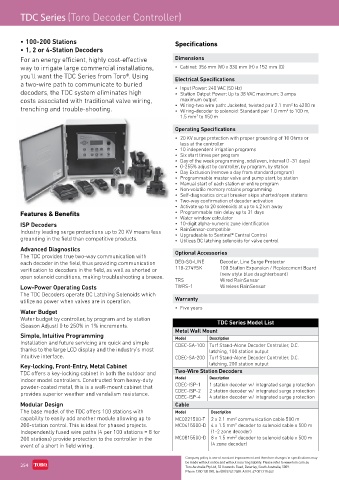

Page 272 - Toro Irrigation Product Catalogue August 2020

TDC Series (Toro Decoder Controller)

• 100-200 Stations Specifications
• 1, 2 or 4-Station Decoders
For an energy efficient, highly cost-effective Dimensions
way to irrigate large commercial installations, • Cabinet: 356 mm (W) x 330 mm (H) x 152 mm (D)
you’ll want the TDC Series from Toro®. Using Electrical Specifications
a two-wire path to communicate to buried • Input Power: 240 VAC (50 Hz)
decoders, the TDC system eliminates high • Station Output Power: Up to 38 VAC maximum; 3 amps
maximum output
costs associated with traditional valve wiring, • Wiring-two wire path: Jacketed, twisted pair 2.1 mm to 4200 m
2
trenching and trouble-shooting. • Wiring-decoder to solenoid: Standard pair 1.0 mm to 100 m,
2
1.5 mm to 150 m
2
Operating Specifications
• 20 KV surge protection with proper grounding of 10 Ohms or
less at the controller
• 10 independent irrigation programs
• Six start times per program
• Day of the week programming, odd/even, interval (1-31 days)
• 0-255% adjust by controller, by program, by station
• Day Exclusion (remove a day from standard program)
• Programmable master valve and pump start, by station
• Manual start of each station or entire program
• Non-volatile memory retains programming
• Self-diagnostics circuit breaker skips shorted/open stations
• Two-way confirmation of decoder activation
• Activate up to 20 solenoids at up to 4.2 km away
Features & Benefits • Programmable rain delay up to 31 days
• Water window calculator
ISP Decoders • 10-digit alpha-numeric zone identification
Industry leading surge protections up to 20 KV means less • RainSensor-compatible
• Upgradeable to Sentinel® Central Control
grounding in the field than competitive products. • Utilizes DC latching solenoids for valve control
Advanced Diagnostics Optional Accessories
The TDC provides true two-way communication with
each decoder in the field, thus providing communication DEG-SG-LINE Decoder, Line Surge Protector
verification to decoders in the field, as well as shorted or 118-2749SK 100 Station Expansion / Replacement Board
open solenoid conditions, making troubleshooting a breeze. (new style blue daughterboard)
TRS Wired RainSensor
Low-Power Operating Costs TWRS-1 Wireless RainSensor
The TDC Decoders operate DC Latching Solenoids which
utilize no power when valves are in operation. Warranty
• Five years
Water Budget
Water budget by controller, by program and by station TDC Series Model List
(Season Adjust) 0 to 250% in 1% increments.
Metal Wall Mount
Simple, Intuitive Programming Model Description
Installation and future servicing are quick and simple CDEC-SA-100 Turf Stand-Alone Decoder Controller, D.C.
thanks to the large LCD display and the industry’s most latching, 100 station output
intuitive interface. CDEC-SA-200 Turf Stand-Alone Decoder Controller, D.C.

Key-locking, Front-Entry, Metal Cabinet latching, 200 station output
TDC offers a key-locking cabinet in both the outdoor and Two-Wire Station Decoders
indoor model controllers. Constructed from heavy-duty Model Description
powder-coated metal, this is a wall-mount cabinet that CDEC-ISP-1 1 station decoder w/ integrated surge protection
provides superior weather and vandalism resistance. CDEC-ISP-2 2 station decoder w/ integrated surge protection
CDEC-ISP-4 4 station decoder w/ integrated surge protection
Modular Design Cable
The base model of the TDC offers 100 stations with Model Description
capability to easily add another module allowing up to MC0221500-T 2 x 2.1 mm communication cable 500 m
2
200-station control. This is ideal for phased projects. MC0415500-D 4 x 1.5 mm decoder to solenoid cable x 500 m
2
Independently fused wire paths (4 per 100 stations = 8 for (1-2 zone decoder)
2
200 stations) provide protection to the controller in the MC0815500-D 8 x 1.5 mm decoder to solenoid cable x 500 m
event of a short in field wiring. (4 zone decoder)
Company policy is one of constant improvement and therefore changes in specifications may
254 be made without notice and without incurring liability. Please refer to www.toro.com.au
Toro Australia Pty Ltd, 53 Howards Road, Beverley, South Australia, 5009.
Phone 1300 130 898, fax (08) 8243 2488. A.B.N. 47 001 310 443
