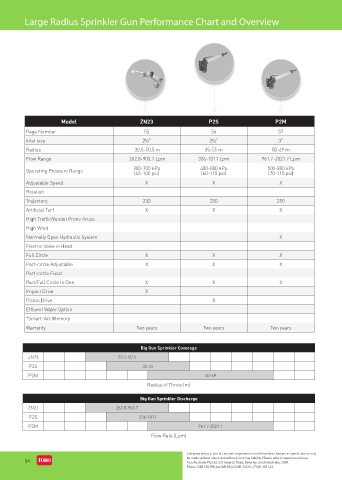

Large Radius Sprinkler Gun Performance Chart and Overview

Model ZN23 P2S P2M

Page Number 55 56 57
Inlet size 2½” 2½” 3”
Radius 33.5-50.5 m 35-55 m 50-69 m
Flow Range 262.8-903.7 Lpm 336-1011 Lpm 961.7-2021.7 Lpm
300-700 kPa 400-800 kPa 500-800 kPa
Operating Pressure Range (45-100 psi) (60-115 psi) (70-115 psi)
Adjustable Speed X X X
Rotation
Trajectory 230 250 250
Artificial Turf X X X
High Traffic/Vandal Prone Areas
High Wind
Normally Open Hydraulic System X
Electric Valve in Head
Full Circle X X X
Part-circle Adjustable X X X
Part-circle Fixed
Part/Full Circle In One X X X
Impact Drive X
Piston Drive X
Effluent Water Option
*Smart-Arc Memory

Warranty Two years Two years Two years

Big Gun Sprinkler Coverage
ZN23 33.5-50.5
P2S 35-55
P2M 50-69
Radius of Throw (m)

Big Gun Sprinkler Discharge
ZN23 262.8-903.7
P2S 336-1011

P2M 961.7-2021.7
Flow Rate (Lpm)
