Page 66 - Toro Irrigation Product Catalogue August 2020
P. 66

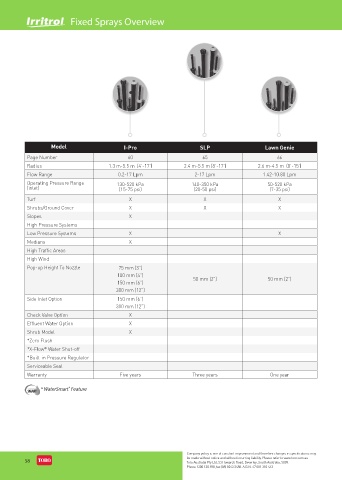

Fixed Sprays Overview
R
Model I-Pro SLP Lawn Genie
Page Number 60 65 66
Radius 1.3 m-5.5 m (4’-17’) 2.4 m-5.5 m (8’-17’) 2.6 m-4.5 m (8’-15’)
Flow Range 0.2-17 Lpm 2-17 Lpm 1.42-10.80 Lpm
Operating Pressure Range 130-520 kPa 140-350 kPa 50-520 kPa
(inlet) (15-75 psi) (20-50 psi) (7-35 psi)
Turf X X X
Shrubs/Ground Cover X X X
Slopes X
High Pressure Systems
Low Pressure Systems X X
Medians X
High Traffic Areas
High Wind
Pop-up Height To Nozzle 75 mm (3”)
100 mm (4”) 50 mm (2”) 50 mm (2”)
150 mm (6”)
300 mm (12”)
Side Inlet Option 150 mm (6”)
300 mm (12”)
Check Valve Option X
Effluent Water Option X
Shrub Model X
*Zero Flush
*X-Flow Water Shut-off
®
*Built-in Pressure Regulator
Serviceable Seal
Warranty Five years Three years One year
* WaterSmart Feature
®
Company policy is one of constant improvement and therefore changes in specifications may
be made without notice and without incurring liability. Please refer to www.toro.com.au
58 Toro Australia Pty Ltd, 53 Howards Road, Beverley, South Australia, 5009.
Phone 1300 130 898, fax (08) 8243 2488. A.B.N. 47 001 310 443
