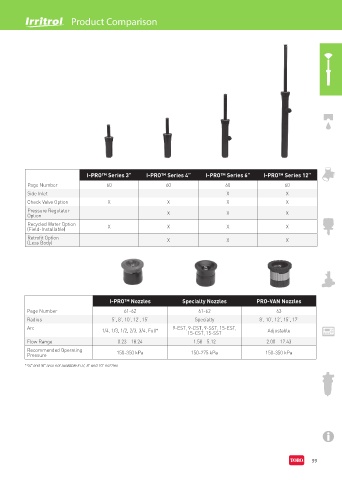

Page 67 - Toro Irrigation Product Catalogue August 2020
P. 67
R Product Comparison
I-PRO™ Series 3” I-PRO™ Series 4” I-PRO™ Series 6” I-PRO™ Series 12”
Page Number 60 60 60 60
Side Inlet X X
Check Valve Option X X X X
Pressure Regulator
Option X X X
Recycled Water Option
(Field-Installable) X X X X
Retrofit Option X X X
(Less Body)
I-PRO™ Nozzles Specialty Nozzles PRO-VAN Nozzles
Page Number 61-62 61-62 63
Radius 5’, 8’, 10’, 12’, 15’ Specialty 8’, 10’, 12’, 15’, 17’
Arc 9-EST, 9-CST, 9-SST, 15-EST,
1/4, 1/3, 1/2, 2/3, 3/4, Full*
15-CST, 15-SST Adjustable
Flow Range 0.23 - 18.24 1.58 - 5.12 2.00 - 17.43
Recommended Operating 150-350 kPa 150-275 kPa 150-350 kPa
Pressure
* ⁄3” and ¾” arcs not available in 5’, 8’ and 10’ nozzles
2
59
