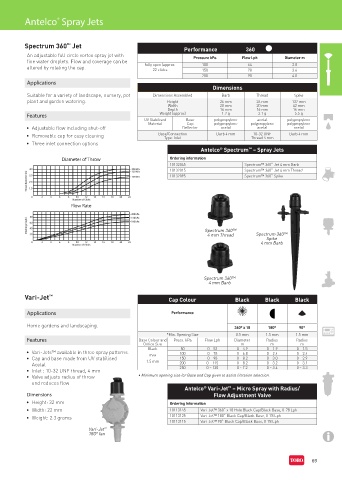

Page 77 - Toro Irrigation Product Catalogue August 2020

Antelco Spray Jets
®

Spectrum 360 Jet Performance 360˚
™
An adjustable full circle vortex spray jet with
fine water droplets. Flow and coverage can be Pressure kPa Flow Lph Diameter m
altered by rotating the cap. fully open (approx. 100 64 2.8
22 clicks
78
150
3.6
200 90 4.0
Applications
Dimensions
Suitable for a variety of landscape, nursery, pot Dimensions Assembled Barb Thread Spike
plant and garden watering. Height 26 mm 26 mm 137 mm
Width 20 mm 20 mm 42 mm
Depth 16 mm 16 mm 16 mm
Features Weight (approx) 1.7 g 2.1 g 5.5 g
UV Stabilised Base polypropylene acetal polypropylene
Material Cap polypropylene polypropylene polypropylene
• Adjustable flow including shut-off Deflector acetal acetal acetal
10-32 UNF
• Removable cap for easy cleaning Base/Connection Barb 4 mm Thread 4 mm Barb 4 mm
Type: Inlet
• Three inlet connection options
Antelco Spectrum – Spray Jets
™
®
Diameter of Throw Ordering information
10132045 Spectrum™ 360˚ Jet 4 mm Barb
10132015 Spectrum™ 360˚ Jet 4 mm Thread
10132095 Spectrum™ 360˚ Spike

Flow Rate

Spectrum 360™
4 mm Thread Spectrum 360™
Spike
4 mm Barb

Spectrum 360™
4 mm Barb

Vari-Jet ™ Cap Colour Black Black Black

Applications Performance

Home gardens and landscaping. 360° x 18 180° 90°
*Min. Opening Size 0.5 mm 1.5 mm 1.5 mm
Features Base Colour and Press. kPa Flow Lph Diameter Radius Radius
Orifice Size m m m
Black 50 0 – 53 0 – 4.9 0 – 1.9 0 – 1.5
• Vari-Jets™ available in three spray patterns. max 100 0 – 78 0 – 6.8 0 – 2.4 0 – 2.4
• Cap and base made from UV stabilised 150 0 – 98 0 – 8.2 0 – 3.0 0 – 2.9
Acetal 1.5 mm 200 0 – 115 0 – 8.2 0 – 3.2 0 – 3.1
• Inlet : 10-32 UNF thread, 4 mm 250 0 – 130 0 - 7.2 0 – 3.4 0 – 3.3
• Valve adjusts radius of throw • Minimum opening size for Base and Cap given to assist filtration selection.
and reduces flow
Antelco Vari-Jet – Micro Spray with Radius/
™
®
Dimensions Flow Adjustment Valve
• Height: 32 mm Ordering information
• Width: 22 mm 10113145 Vari-Jet™ 360˚ x 18 Hole Black Cap/Black Base, 0-78 Lph
• Weight: 2.3 grams 10113125 Vari-Jet™ 180˚ Black Cap/Black Base, 0-78 Lph
10113115 Vari-Jet™ 90˚ Black Cap/Black Base, 0-78 Lph
Vari-Jet ™
180° fan
