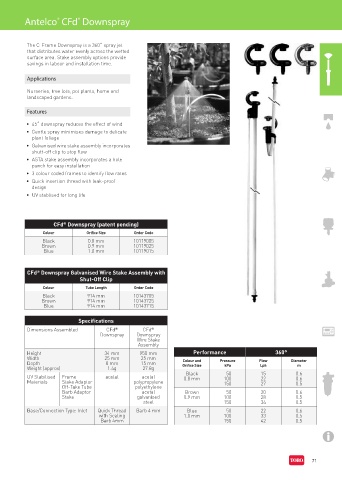

Page 79 - Toro Irrigation Product Catalogue August 2020

Antelco CFd Downspray
®
®

The C-Frame Downspray is a 360˚ spray jet
that distributes water evenly across the wetted
surface area. Stake assembly options provide
savings in labour and installation time.

Applications

Nurseries, tree lots, pot plants, home and
landscaped gardens.

Features

• 45˚ downspray reduces the effect of wind
• Gentle spray minimises damage to delicate
plant foliage
• Galvanised wire stake assembly incorporates
shutt-off clip to stop flow
• ASTA stake assembly incorporates a hole
punch for easy installation
• 3 colour coded frames to identify flow rates
• Quick insertion thread with leak-proof
design
• UV stablised for long life

CFd Downspray (patent pending)
®
Colour Orifice Size Order Code
Black 0.8 mm 10119005
Brown 0.9 mm 10119025
Blue 1.0 mm 10119015

CFd Downspray Galvanised Wire Stake Assembly with
®
Shut-Off Clip
Colour Tube Length Order Code
Black 914 mm 10143705
Brown 914 mm 10143725
Blue 914 mm 10143715

Specifications
Dimensions Assembled CFd CFd
®
®
Downspray Downspray
Wire Stake
Assembly
Height 34 mm 950 mm Performance 360°
Width 25 mm 25 mm
Depth 8 mm 15 mm Colour and Pressure Flow Diameter
Weight (approx) 1.4g 27.8g Orifice Size kPa Lph m
Black 50 15 0.6
UV Stabilised Frame acetal acetal 0.8 mm 100 22 0.6
Materials Stake Adaptor polypropylene 150 27 0.5
Off-Take Tube polyethylene
Barb Adaptor acetal Brown 50 20 0.6
Stake galvanised 0.9 mm 100 28 0.5
steel 150 34 0.5
Base/Connection Type: Inlet Quick Thread Barb 4 mm Blue 50 22 0.6
with Sealing 1.0 mm 100 33 0.5
Barb 4mm 150 42 0.5
