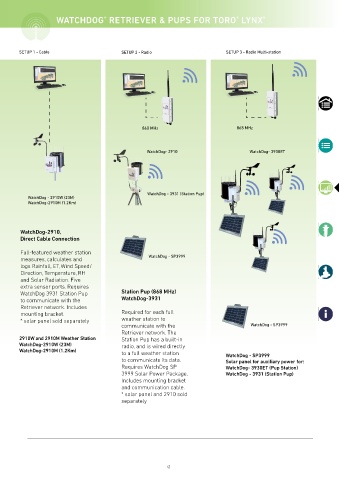

WATCHDOG RETRIEVER & PUPS FOR TORO LYNX ®
®
®
SETUP 1 - Cable SETUP 2 - Radio SETUP 3 - Radio Multi-station
868 MHz 868 MHz
WatchDog- 2910 WatchDog- 3930ET
WatchDog - 3931 (Station Pup)
WatchDog - 2910W (23M)
WatchDog-2910M (1.2Km)
WatchDog-2910,
Direct Cable Connection
Full-featured weather station
measures, calculates and WatchDog - SP3999
logs Rainfall, ET, Wind Speed/
Direction, Temperature, RH
and Solar Radiation. Five
extra sensor ports. Requires
WatchDog 3931 Station Pup Station Pup (868 MHz)
to communicate with the WatchDog-3931
Retriever network. Includes
mounting bracket. Required for each full
* solar panel sold separately weather station to
communicate with the WatchDog - SP3999
Retriever network. The
2910W and 2910M Weather Station Station Pup has a built-in
WatchDog-2910W (23M) radio, and is wired directly
WatchDog-2910M (1.2Km) to a full weather station WatchDog - SP3999
to communicate its data. Solar panel for auxiliary power for:
Requires WatchDog SP WatchDog- 3930ET (Pup Station)
3999 Solar Power Package. WatchDog - 3931 (Station Pup)
Includes mounting bracket
and communication cable.
* solar panel and 2910 sold
separately
