SPRINKLERS

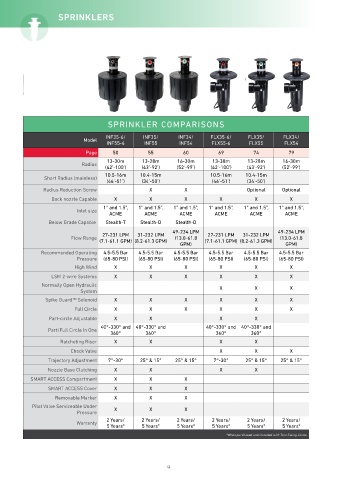

SPRINKLER COMPARISONS

INF35-6/ INF35/ INF34/ FLX35-6/ FLX35/ FLX34/
Model
INF55-6 INF55 INF54 FLX55-6 FLX55 FLX54
Page 50 55 60 69 74 79
13-30m 13-28m 16-30m 13-30m 13-28m 16-30m
Radius
(42’-100’) (43’-92’) (52’-99’) (42’-100’) (43’-92’) (52’-99’)
10.5-16m 10.4-15m 10.5-16m 10.4-15m
Short Radius (mainless)
(46’-51’) (34’-50’) (46’-51’) (34’-50’)
Radius Reduction Screw X X Optional Optional
Back nozzle Capable X X X X X X
1” and 1.5”, 1” and 1.5”, 1” and 1.5”, 1” and 1.5”, 1” and 1.5”, 1” and 1.5”,
Inlet size
ACME ACME ACME ACME ACME ACME
Below Grade Capable Stealth-T Stealth-D Stealth-D
49-234 LPM 49-234 LPM
27-231 LPM 31-232 LPM 27-231 LPM 31-232 LPM
Flow Range (13.0-61.8 (13.0-61.8
(7.1-61.1 GPM) (8.2-61.3 GPM) (7.1-61.1 GPM) (8.2-61.3 GPM)
GPM) GPM)
Recommended Operating 4.5-5.5 Bar 4.5-5.5 Bar 4.5-5.5 Bar 4.5-5.5 Bar 4.5-5.5 Bar 4.5-5.5 Bar
Pressure (65-80 PSI) (65-80 PSI) (65-80 PSI) (65-80 PSI) (65-80 PSI) (65-80 PSI)
High Wind X X X X X X
LSM 2-wire Systems X X X X X X
Normally Open Hydraulic X X X
System
Spike Guard™ Solenoid X X X X X X
Full Circle X X X X X X
Part-circle Adjustable X X X X
40°-330° and 40°-330° and 40°-330° and 40°-330° and
Part/Full Circle In One
360° 360° 360° 360°
Ratcheting Riser X X X X
Check Valve X X X
Trajectory Adjustment 7°-30° 25° & 15° 25° & 15° 7°-30° 25° & 15° 25° & 15°
Nozzle Base Clutching X X X X
SMART ACCESS Compartment X X X
SMART ACCESS Cover X X X
Removable Marker X X X
Pilot Valve Serviceable Under
Pressure X X X
2 Years/ 2 Years/ 2 Years/ 2 Years/ 2 Years/ 2 Years/
Warranty
5 Years* 5 Years* 5 Years* 5 Years* 5 Years* 5 Years*
*When purchased and installed with Toro Swing Joints.
