SPRINKLERS

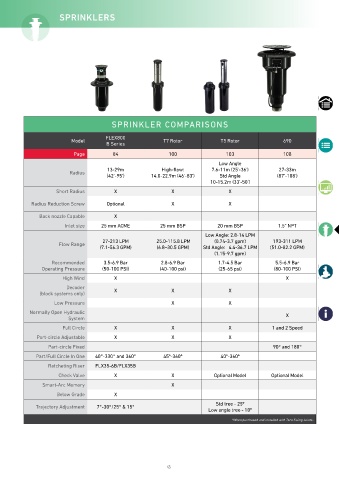

SPRINKLER COMPARISONS

FLEX800
Model T7 Rotor T5 Rotor 690
B Series
Page 84 100 103 108
Low Angle
13-29m High-flow: 7.6-11m (25'-36') 27-33m
Radius
(42’-95’) 14.0-22.9m (46'-83') Std Angle (87’-108’)
10-15.2m (33'-50')
Short Radius X X X

Radius Reduction Screw Optional X X

Back nozzle Capable X
Inlet size 25 mm ACME 25 mm BSP 20 mm BSP 1.5” NPT
Low Angle: 2.8-14 LPM
27-213 LPM 25.0-115.8 LPM (0.74-3.7 gpm) 193-311 LPM
Flow Range
(7.1-56.3 GPM) (6.8–30.5 GPM) Std Angle: 4.4-36.7 LPM (51.0-82.2 GPM)
(1.15-9.7 gpm)
Recommended 3.5-6.9 Bar 2.8-6.9 Bar 1.7-4.5 Bar 5.5-6.9 Bar
Operating Pressure (50-100 PSI) (40-100 psi) (25-65 psi) (80-100 PSI)
High Wind X X
Decoder X X X
(block systems only)
Low Pressure X X
Normally Open Hydraulic
System X
Full Circle X X X 1 and 2 Speed
Part-circle Adjustable X X X
Part-circle Fixed 90° and 180°

Part/Full Circle In One 40°-330° and 360° 45º-360º 40º-360º
Ratcheting Riser FLX35-6B/FLX35B
Check Valve X X Optional Model Optional Model
Smart-Arc Memory X
Below Grade X
Std tree - 25º
Trajectory Adjustment 7°-30°/25° & 15°
Low angle tree - 10º
*When purchased and installed with Toro Swing Joints.
