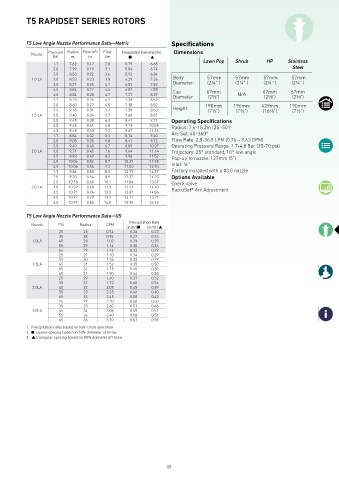

T5 RAPIDSET SERIES ROTORS

T5 Low Angle Nozzle Performance Data—Metric Specifications
Pressure Radius Flow m³/ Flow Precipitation Rate (mm/hr) Dimensions
Nozzle
Bar m. hr l/m ■ ▲
Lawn Pop Shrub HP Stainless
1.7 7.62 0.17 2.8 5.79 6.68
2.0 7.99 0.19 3.1 5.84 6.74 Steel
2.5 8.53 0.22 3.6 5.93 6.84
1.0 LA 3.0 8.53 0.23 3.8 6.29 7.26 Body 57mm 57mm 57mm 57mm
3.5 8.71 0.25 4.1 6.52 7.53 Diameter: (2¼” ) (2¼” ) (2¼” ) (2¼” )
4.0 8.84 0.27 4.4 6.82 7.88 Cap 67mm 67mm 67mm
4.5 8.84 0.28 4.7 7.27 8.39 Diameter: (2 ⁄8”) N/A (2 ⁄8”) (2 ⁄8”)
5
5
5
1.7 8.23 0.25 4.2 7.38 8.52
2.0 8.60 0.27 4.5 7.38 8.52 190mm 196mm 429mm 190mm
2.5 9.18 0.31 5.2 7.39 8.53 Height: (7½”) (7¾”) (16 7 ⁄8”) (7½”)
1.5 LA 3.0 9.40 0.34 5.7 7.68 8.87
3.5 9.45 0.38 6.3 8.41 9.71 Operating Specifications
4.0 9.45 0.41 6.8 9.13 10.55 Radius: 7.6-15.2m (25’-50’)
4.5 9.45 0.43 7.2 9.67 11.16
1.7 8.84 0.32 5.3 8.14 9.40 Arc Set: 40–360°
2.0 9.08 0.35 5.8 8.41 9.72 Flow Rate: 2.8-36.5 LPM (0.76 – 9.63 GPM)
2.5 9.49 0.40 6.7 8.89 10.27 Operating Pressure Range: 1.7-4,8 Bar (25-70 psi)
2.0 LA 3.0 9.71 0.45 7.6 9.64 11.14 Trajectory: 25° standard, 10° low angle
3.5 9.93 0.49 8.2 9.98 11.52 Pop-up to nozzle: 127mm (5”)
4.0 10.06 0.52 8.7 10.37 11.98
4.5 10.06 0.56 9.3 11.00 12.70 Inlet: ¾”
1.7 8.84 0.50 8.3 12.79 14.77 Factory installed with a #3.0 nozzle
2.0 9.33 0.54 8.9 12.32 14.23 Options Available
2.5 10.10 0.60 10.1 11.84 13.67 Check valve
3.0 LA 3.0 10.32 0.68 11.3 12.73 14.70 RapidSet® Arc Adjustment
3.5 10.71 0.74 12.3 12.87 14.86
4.0 10.97 0.79 13.2 13.17 15.21
4.5 10.97 0.84 14.0 13.96 16.12
T5 Low Angle Nozzle Performance Data—US
Precipitation Rate
Nozzle PSI Radius GPM
(in/hr)■ (in/hr) ▲
25 25 0.74 0.26 0.23
35 28 0.94 0.27 0.23
1.0LA 45 28 1.02 0.29 0.25
55 29 1.14 0.30 0.26
65 29 1.25 0.33 0.29
25 27 1.10 0.34 0.29
35 30 1.35 0.33 0.29
1.5LA 45 31 1.52 0.35 0.30
55 31 1.75 0.40 0.35
65 31 1.90 0.44 0.38
25 29 1.40 0.37 0.32
35 31 1.72 0.40 0.34
2.0LA 45 32 2.05 0.45 0.39
55 33 2.25 0.46 0.40
65 33 2.45 0.50 0.43
25 29 2.20 0.58 0.50
35 33 2.60 0.53 0.46
3.0LA 45 34 3.05 0.59 0.51
55 36 3.40 0.58 0.51
65 36 3.70 0.63 0.55
1. Precipitation rates based on half-circle operation
2. square spacing based on 50% diameter of throw
3. triangular spacing based on 50% diameter of throw

107
