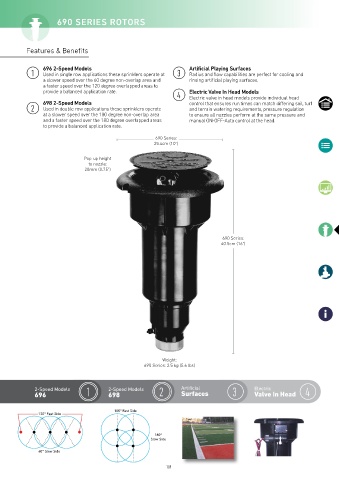

690 SERIES ROTORS

Features & Benefits

696 2-Speed Models Artificial Playing Surfaces
1 Used in single row applications these sprinklers operate at 3 Radius and flow capabilities are perfect for cooling and
a slower speed over the 60 degree non-overlap area and rinsing artificial playing surfaces.
a faster speed over the 120 degree overlapped areas to
provide a balanced application rate. Electric Valve In Head Models
4 Electric valve in head models provide individual head
698 2-Speed Models control that ensures run times can match differing soil, turf
2 Used in double row applications these sprinklers operate and terrain watering requirements, pressure regulation
at a slower speed over the 180 degree non-overlap area to ensure all nozzles perform at the same pressure and
and a faster speed over the 180 degree overlapped areas manual ON-OFF-Auto control at the head.
to provide a balanced application rate.

690 Series:
25.4cm (10”)

Pop-up height
to nozzle:
20mm (0.75”)

690 Series:
40.5cm (16”)

Weight:
690 Series: 2.5 kg (5.6 lbs)

2-Speed Models 1 2-Speed Models 2 Artificial 3 Valve In Head 4
Electric
696 698 Surfaces

180° Fast Side
120° Fast Side

180°
Slow Side
60° Slow Side

109
