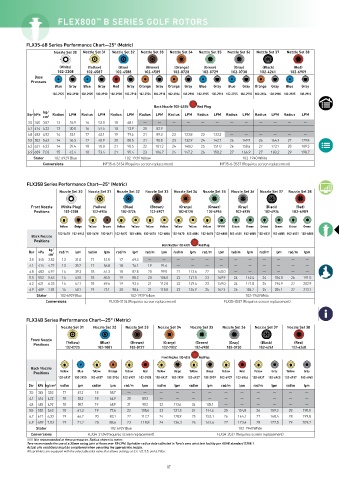

FLEX800 B SERIES GOLF ROTORS
™

FLX35-6B Series Performance Chart—25° (Metric)
Nozzle Set 30 Nozzle Set 31 Nozzle Set 32 Nozzle Set 33 Nozzle Set 34 Nozzle Set 35 Nozzle Set 36 Nozzle Set 37 Nozzle Set 38

(White) (Yellow) (Blue) (Brown) (Orange) (Green) (Gray) (Black) (Red)
102-2208 102-4587 102-4588 102-4589 102-0728 102-0729 102-0730 102-4261 102-6909
Base
Pressure
Blue Gray Blue Gray Red Gray Orange Gray Orange Gray Blue Gray Blue Gray Orange Gray Blue Gray
102-2925 102-2910 102-2925 102-2910 102-2928 102-2910 102-2926 102-2910 102-2926 102-2910 102-2925 102-2910 102-2925 102-2910 102-2926 102-2910 102-2925 102-2910

Back Nozzle 102-4335 Red Plug
kg/
Bar kPa 2 Radius LPM Radius LPM Radius LPM Radius LPM Radius LPM Radius LPM Radius LPM Radius LPM Radius LPM
cm
3.5 345 3.52 13 26.9 16 53.0 18 68.1 — — — — — — — — — — — —
4.1 414 4.22 13 30.0 16 57.5 18 73.9 20 82.9 — — — — — — — — — —
4.8 483 4.92 14 33.1 17 62.1 19 79.6 21 89.3 23 123.8 23 133.2 — — — — — —
5.5 552 5.63 14 36.3 17 65.9 20 85.5 21 95.8 23 132.9 24 142.7 26 149.9 26 164.3 27 179.8
6.2 621 6.33 14 39.4 18 70.0 21 90.5 22 101.2 24 140.0 25 151.0 26 158.6 27 173.7 28 189.3
6.9 689 7.03 15 42.4 18 73.4 21 95.4 23 106.7 24 147.2 26 158.2 27 166.9 27 183.2 29 198.7
Stator 102-6929 Blue 102-1939 Yellow 102-1940 White
Conversions INF35-6-3134 (Requires screen replacement) INF35-6-3537 (Requires screen replacement)

FLX35B Series Performance Chart—25° (Metric)
Nozzle Set 30 Nozzle Set 31 Nozzle Set 32 Nozzle Set 33 Nozzle Set 34 Nozzle Set 35 Nozzle Set 36 Nozzle Set 37 Nozzle Set 38

Front Nozzle (White Plug) (Yellow) (Blue) (Brown) (Orange) (Green) (Gray) (Black) (Red)
Positions 102-2208 102-6906 102-0726 102-6907 102-0728 102-6955 102-6935 102-6936 102-6909

Yellow Beige Yellow Brown Yellow Yellow Yellow Yellow Yellow Yellow Yellow Green Green Green Green Green Green Green
102-5670 102-6942 102-5670 102-5671 102-5670 102-6884 102-5670 102-6884 102-5670 102-6884 102-5670 102-6885 102-6531 102-6885 102-6531 102-6885 102-6531 102-6885
Back Nozzle
Positions
Back Nozzles 102-4335 Red Plug
kg/
Bar kPa rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm
cm 2
3.5 345 3.52 13 31.0 17 51.5 17 69.3 — — — — — — — — — — — —
4.1 414 4.22 13 35.2 17 56.8 18 76.1 19 91.6 — — — — — — — — — —
4.8 483 4.92 14 39.3 18 61.3 18 82.5 20 99.5 21 113.6 22 140.0 — — — — — —
5.5 552 5.63 14 43.5 18 65.5 19 88.2 20 106.0 22 121.5 23 149.9 24 162.4 24 184.0 26 191.5
6.2 621 6.33 14 47.1 18 69.6 19 93.5 21 112.8 22 129.4 23 159.0 24 171.8 25 194.9 27 202.9
6.9 689 7.03 14 50.7 19 73.1 20 98.4 21 118.8 23 135.9 24 167.3 25 184.7 25 205.1 27 213.1
Stator 102-6929 Blue 102-1939 Yellow 102-1940 White
Conversions FLX35-3134 (Requires screen replacement) FLX35-3537 (Requires screen replacement)

FLX34B Series Performance Chart—25° (Metric)
Nozzle Set 31 Nozzle Set 32 Nozzle Set 33 Nozzle Set 34 Nozzle Set 35 Nozzle Set 36 Nozzle Set 37 Nozzle Set 38

Front Nozzle
Positions (Yellow) (Blue) (Brown) (Orange) (Green) (Gray) (Black) (Red)
102-0725 102-7001 102-0727 102-7002 102-6908 102-0730 102-4261 102-4260
Front Nozzles 102-4335 Red Plug
Back Nozzle
Positions Yellow Blue Yellow Orange Yellow Red Yellow Beige Yellow Beige Yellow Red Yellow Gray Yellow Gray
102-6937 102-2925 102-6937 102-2926 102-6937 102-2928 102-6937 102-2929 102-6937 102-2929 102-6937 102-6944 102-6937 102-6945 102-6937 102-6945
Bar kPa kg/cm 2 rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm rad/m lpm
3,5 345 3,52 17 49,2 18 58,7 — — — — — — — — — — — —
4,1 414 4,22 18 53,2 18 64,9 20 89,3 — — — — — — — — — —
4,8 483 4,92 18 58,7 19 68,9 21 99,2 22 113,6 24 135,1 — — — — — —
5,5 552 5,63 18 61,3 19 77,6 22 105,6 23 121,5 24 144,6 25 154,8 26 159,3 28 190,0
6,2 621 6,33 19 66,2 20 83,1 22 112,2 24 128,9 25 153,1 26 164,1 27 168,4 28 199,8
6,9 689 7,03 19 71,2 20 88,6 23 118,8 24 136,3 26 161,6 27 173,4 28 177,5 29 209,7
Stator 102-6929 Blue 102-1940 White
Conversions FLX34-3134 (Requires screen replacement) FLX34-3537 (Requires screen replacement)
■ Not recommended at these pressures. Radius shown in meter.
Toro recommends the use of a 30mm swing joint at flows over 95-LPM. Sprinkler radius data collected in Toro’s zero wind test facility per ASAE standard S398.1.
Actual site conditions must be considered when selecting the appropriate nozzle.
All sprinklers are equipped with the selectable pilot valve that allows settings at 3,4; 4,5; 5,5; and 6,9 Bar.
