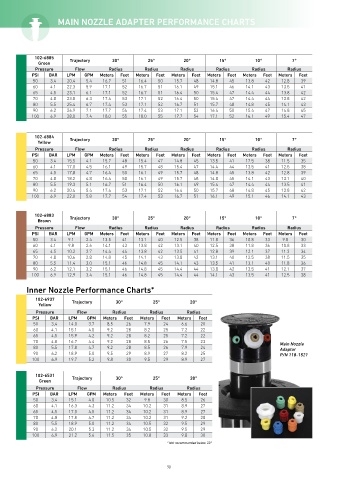

MAIN NOZZLE ADAPTER PERFORMANCE CHARTS

102-6885 Trajectory 30° 25° 20° 15° 10° 7°
Green
Pressure Flow Radius Radius Radius Radius Radius Radius
PSI BAR LPM GPM Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet
50 3.4 20.4 5.4 16.7 51 16.4 50 15.7 48 14.8 45 13.8 42 12.8 39
60 4.1 22.3 5.9 17.1 52 16.7 51 16.1 49 15.1 46 14.1 43 13.5 41
65 4.5 23.1 6.1 17.1 52 16.7 51 16.4 50 15.4 47 14.4 44 13.8 42
70 4.8 23.8 6.3 17.4 53 17.1 52 16.4 50 15.4 47 14.4 44 13.8 42
80 5.5 25.4 6.7 17.4 53 17.1 52 16.7 51 15.7 48 14.8 45 14.1 43
90 6.2 26.9 7.1 17.7 54 17.4 53 17.1 52 16.4 50 15.4 47 14.8 45
100 6.9 28.0 7.4 18.0 55 18.0 55 17.7 54 17.1 52 16.1 49 15.4 47

102-6884 Trajectory 30° 25° 20° 15° 10° 7°
Yellow
Pressure Flow Radius Radius Radius Radius Radius Radius
PSI BAR LPM GPM Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet
50 3.4 15.5 4.1 15.7 48 15.4 47 14.8 45 13.5 41 12.5 38 11.5 35
60 4.1 17.0 4.5 16.1 49 15.7 48 15.4 47 14.4 44 13.5 41 12.5 38
65 4.5 17.8 4.7 16.4 50 16.1 49 15.7 48 14.8 45 13.8 42 12.8 39
70 4.8 18.2 4.8 16.4 50 16.1 49 15.7 48 14.8 45 14.1 43 13.1 40
80 5.5 19.3 5.1 16.7 51 16.4 50 16.1 49 15.4 47 14.4 44 13.5 41
90 6.2 20.4 5.4 17.4 53 17.1 52 16.4 50 15.7 48 14.8 45 13.8 42
100 6.9 22.0 5.8 17.7 54 17.4 53 16.7 51 16.1 49 15.1 46 14.1 43

102-6883
Brown Trajectory 30° 25° 20° 15° 10° 7°
Pressure Flow Radius Radius Radius Radius Radius Radius
PSI BAR LPM GPM Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet Meters Feet
50 3.4 9.1 2.4 13.5 41 13.1 40 12.5 38 11.8 36 10.8 33 9.8 30
60 4.1 9.8 2.6 14.1 43 13.8 42 13.1 40 12.5 38 11.8 36 10.8 33
65 4.5 10.2 2.7 14.4 44 13.8 42 13.5 41 12.8 39 12.1 37 11.2 34
70 4.8 10.6 2.8 14.8 45 14.1 43 13.8 42 13.1 40 12.5 38 11.5 35
80 5.5 11.4 3.0 15.1 46 14.8 45 14.1 43 13.5 41 13.1 40 11.8 36
90 6.2 12.1 3.2 15.1 46 14.8 45 14.4 44 13.8 42 13.5 41 12.1 37
100 6.9 12.9 3.4 15.1 46 14.8 45 14.4 44 14.1 43 13.5 41 12.5 38
Inner Nozzle Performance Charts*

102-6937 Trajectory 30° 25° 20°
Yellow
Pressure Flow Radius Radius Radius
PSI BAR LPM GPM Meters Feet Meters Feet Meters Feet
50 3.4 14.0 3.7 8.5 26 7.9 24 6.6 20
60 4.1 15.1 4.0 9.2 28 8.2 25 7.2 22
65 4.5 15.9 4.2 9.2 28 8.2 25 7.2 22
70 4.8 16.7 4.4 9.2 28 8.5 26 7.5 23 Main Nozzle
80 5.5 17.8 4.7 9.2 28 8.5 26 7.9 24 Adaptor
90 6.2 18.9 5.0 9.5 29 8.9 27 8.2 25 P/N 118-1521
100 6.9 19.7 5.2 9.8 30 9.5 29 8.9 27

102-6531 Trajectory 30° 25° 20°
Green
Pressure Flow Radius Radius Radius
PSI BAR LPM GPM Meters Feet Meters Feet Meters Feet
50 3.4 15.1 4.0 10.5 32 9.8 30 8.5 26
60 4.1 16.3 4.3 11.2 34 10.2 31 8.9 27
65 4.5 17.0 4.5 11.2 34 10.2 31 8.9 27
70 4.8 17.8 4.7 11.2 34 10.2 31 9.2 28
80 5.5 18.9 5.0 11.2 34 10.5 32 9.5 29
90 6.2 20.1 5.3 11.2 34 10.5 32 9.5 29
100 6.9 21.2 5.6 11.5 35 10.8 33 9.8 30
* Not recommended below 20°
