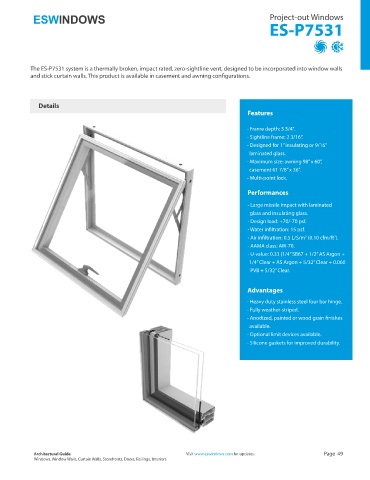

Project-out Windows
ES-P7531

The ES-P7531 system is a thermally broken, impact rated, zero-sightline vent, designed to be incorporated into window walls
and stick curtain walls. This product is available in casement and awning configurations.

Details
Features

- Frame depth: 3 3/4”.
- Sightline frame: 2 3/16”.
- Designed for 1” insulating or 9/16”
laminated glass.
- Maximum size: awning 98” x 60”,
casement 61 7/8” x 36”.
- Multi-point lock.

Performances

- Large missile impact with laminated
glass and insulating glass.
- Design load: +70/-70 psf.
- Water infiltration: 15 psf.
2
- Air infiltration: 0.5 L/S/m (0.10 cfm/ft ).
2
- AAMA class: AW-70.
- U-value: 0.33 (1/4” SB67 + 1/2” AS Argon +
-1/4” Clear + AS Argon + 5/32” Clear + 0.060
- PVB + 5/32” Clear.

Advantages

- Heavy duty stainless steel four bar hinge.
- Fully weather-striped.
- Anodized, painted or wood grain finishes
available.
- Optional limit devices available.
- Silicone gaskets for improved durability.
