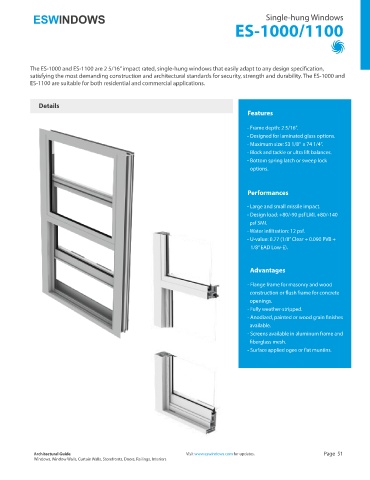

Single-hung Windows
ES-1000/1100

The ES-1000 and ES-1100 are 2 5/16” impact rated, single-hung windows that easily adapt to any design specification,
satisfying the most demanding construction and architectural standards for security, strength and durability. The ES-1000 and
ES-1100 are suitable for both residential and commercial applications.

Details
Features

- Frame depth: 2 5/16”.
- Designed for laminated glass options.
- Maximum size: 53 1/8” x 74 1/4”.
- Block and tackle or ultra lift balances.
- Bottom spring latch or sweep lock
- options.

Performances

- Large and small missile impact.
- Design load: +80/-90 psf LMI, +80/-140
psf SMI.
- Water infiltration: 12 psf.
- U-value: 0.77 (1/8” Clear + 0.090 PVB +
--1/8” EAD Low-E).

Advantages

- Flange frame for masonry and wood
construction or flush frame for concrete
openings.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Surface applied ogee or flat muntins.
