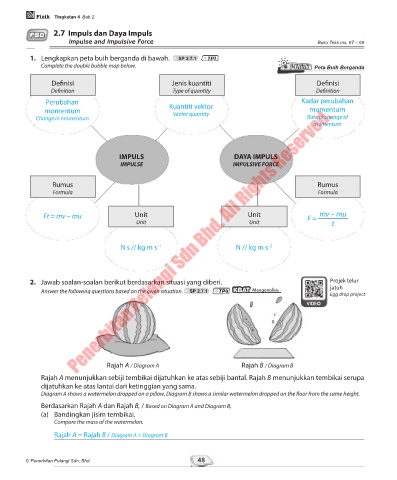

Page 89 - Hybrid PBD KSSM 2021 Tg 4 - Fizik

Fizik Tingkatan 4 Bab 2

PBD 2.7 Impuls dan Daya Impuls
PBD
PBD
Impulse and Impulsive Force Buku Teks ms. 67 – 69

1. Lengkapkan peta buih berganda di bawah. SP 2.7.1 TP1
Complete the double bubble map below. i-Think Peta Buih Berganda
i-Think
i-Think
Definisi Jenis kuantiti Definisi
Definition Type of quantity Definition
Perubahan Kuantiti vektor Kadar perubahan
Penerbitan Pelangi Sdn Bhd. All Rights Reserved.
momentum Vector quantity momentum
Change in momentum Rate of change of
momentum

IMPULS DAYA IMPULS
IMPULSE IMPULSIVE FORCE

Rumus Rumus
Formula Formula

Ft = mv – mu Unit Unit F = mv – mu
Unit Unit t

N s // kg m s –1 N // kg m s –2

2. Jawab soalan-soalan berikut berdasarkan situasi yang diberi. Projek telur
Answer the following questions based on the given situation. SP 2.7.1 TP4 KBAT Menganalisis jatuh
Egg drop project
VIDEO

Rajah A / Diagram A Rajah B / Diagram B
Rajah A menunjukkan sebiji tembikai dijatuhkan ke atas sebiji bantal. Rajah B menunjukkan tembikai serupa
dijatuhkan ke atas lantai dari ketinggian yang sama.
Diagram A shows a watermelon dropped on a pillow. Diagram B shows a similar watermelon dropped on the floor from the same height.
Berdasarkan Rajah A dan Rajah B, / Based on Diagram A and Diagram B,
(a) Bandingkan jisim tembikai.
Compare the mass of the watermelon.
Rajah A = Rajah B / Diagram A = Diagram B

© Penerbitan Pelangi Sdn. Bhd. 48

02 HYBRID PBD FIZIK F4.indd 48 05/11/2021 8:20 AM
