Page 158 - The Effect of Hydrogen and Hydrides - ebook first test
P. 158

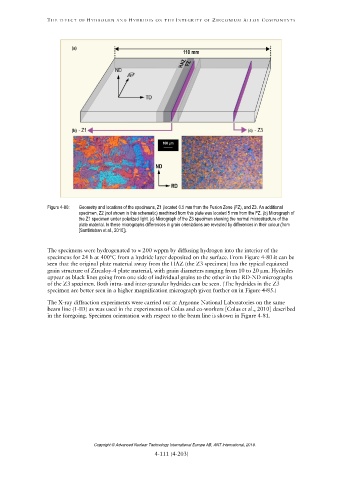

Figure 4-80: Geometry and locations of the specimens, Z1 (located 0.5 mm from the Fusion Zone (FZ), and Z3. An additional
specimen, Z2 (not shown in this schematic) machined from this plate was located 5 mm from the FZ. (b) Micrograph of
the Z1 specimen under polarized light. (c) Micrograph of the Z3 specimen showing the normal microstructure of the
plate material. In these micrographs differences in grain orientations are revealed by differences in their colour (from
[Santisteban et al., 2010]).
