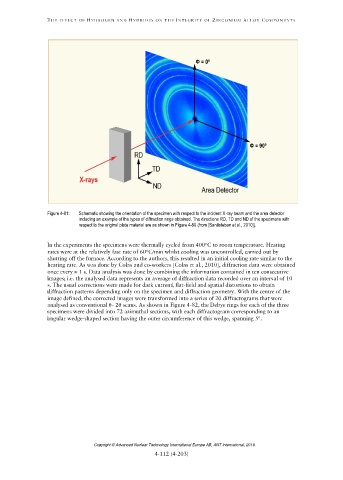

Figure 4-81: Schematic showing the orientation of the specimen with respect to the incident X-ray beam and the area detector
including an example of the types of diffraction rings obtained. The directions RD, TD and ND of the specimens with
respect to the original plate material are as shown in Figure 4-80 (from [Santisteban et al., 2010]).
