P. 215

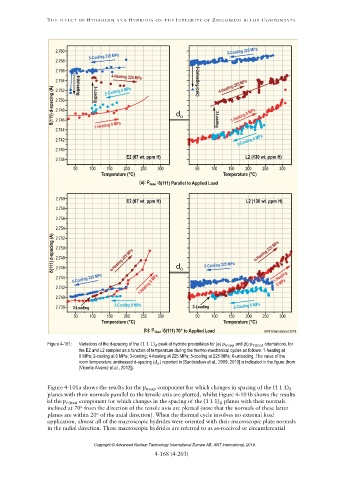

Figure 4-101: Variations of the d-spacing of the (1 1 1) peak of hydride precipitates for (a) and (b) orientations, for
the E2 and L2 samples as a function of temperature during the thermo-mechanical cycles as follows: 1-heating at
0 MPa; 2-cooling at 0 MPa; 3-loading; 4-heating at 225 MPa; 5-cooling at 225 MPa; 6-unloading. The value of the
room temperature unstressed d-spacing ( ) reported in [Santisteban et al., 2009; 2010] is indicated in the figure (from
[Vicente Alvarez et al., 2012]).
(1 1 1)
(1 1 1)
