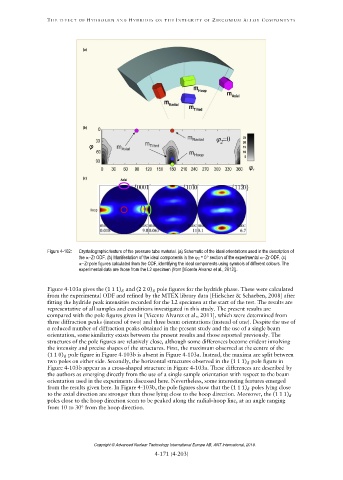

Figure 4-102: Crystallographic texture of the pressure tube material. (a) Schematic of the ideal orientations used in the description of
the αZr ODF. (b) Manifestation of the ideal components in the 2 = 0 section of the experimental αZr ODF. (c)
αZr pole figures calculated from the ODF, identifying the ideal components using symbols of different colours. The
experimental data are those from the L2 specimen (from [Vicente Alvarez et al., 2012]).

(1 1 1) (2 2 0)

(1 1 0)
(1 1 1)

(1 1 1)
(1 1 1)


