Page 214 - The Effect of Hydrogen and Hydrides - ebook first test

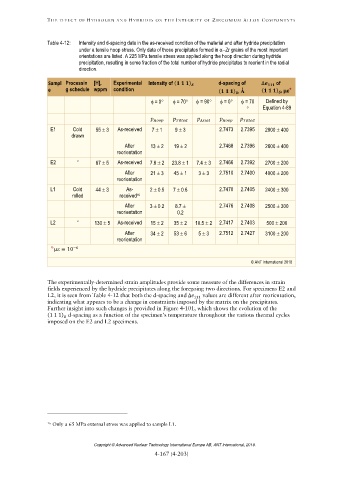

Table 4-12: Intensity and d-spacing data in the as-received condition of the material and after hydride precipitation
under a tensile hoop stress. Only data of those precipitates formed in αZr grains of the most important
orientations are listed. A 225 MPa tensile stress was applied along the hoop direction during hydride
precipitation, resulting in some fraction of the total number of hydride precipitates to reorient in the radial
direction.

Sampl Processin [H], Experimental Intensity of ( ) d-spacing of ∆ of

e g schedule wppm condition ( ) , Å ( ) , *

 = 0  = 70  = 90  = 0  = 70 Defined by
 Equation 4-89

E1 Cold 55  3 As-received 7  1 9  3 2.7473 2.7395 2800  400
drawn
After 13  2 19  2 2.7468 2.7396 2600  400
reorientation

E2 “ 67  5 As-received 7.8  2 23.8  1 7.4  3 2.7466 2.7392 2700  200
After 21  3 45  1 3  3 2.7510 2.7400 4000  200
reorientation

L1 Cold 44  3 As- 2  0.5 7  0.6 2.7470 2.7405 2400  300
rolled received
16
After 3  0.2 8.7  2.7476 2.7408 2500  300
reorientation 0.2
L2 “ 130  5 As-received 15  2 35  2 10.5  2 2.7417 2.7403 500  200
After 34  2 53  6 5  3 2.7512 2.7427 3100  200
reorientation
 ≡ 10 −6

© ANT International 2018

∆ 111

(1 1 1)

Copyright © Advanced Nuclear Technology International Europe AB, ANT International, 2019.
