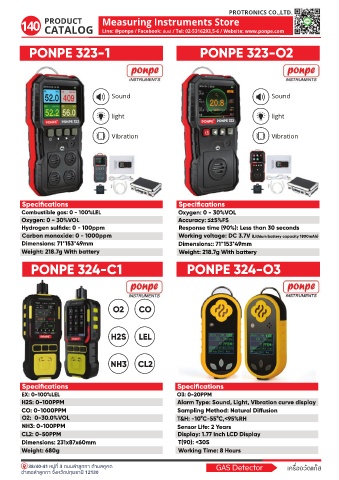

Page 149 - PONPE Catalogs 2022
P. 149
PROTRONICS CO.,LTD.
140 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com
PONPE 323-1 PONPE 323-O2
Sound Sound
light light
Vibration Vibration
Specifications Specifications
Combustible gas: 0 - 100%LEL Oxygen: 0 - 30%VOL
Oxygen: 0 - 30%VOL Accuracy: ≤±5%FS
Hydrogen sulfide: 0 - 100ppm Response time (90%): Less than 30 seconds
Carbon monoxide: 0 - 1000ppm Working voltage: DC 3.7V (Lithium battery capacity 1800mAh)
Dimensions: 71*153*49mm Dimensions:: 71*153*49mm
Weight: 218.7g With battery Weight: 218.7g With battery
PONPE 324-C1 PONPE 324-O3
Specifications Specifications
EX: 0-100%LEL O3: 0-20PPM
H2S: 0-100PPM Alarm Type: Sound, Light, Vibration curve display
CO: 0-1000PPM Sampling Method: Natural Di usion
O2: 0-30.0%VOL T&H: -10°C-55°C,<95%RH
NH3: 0-100PPM Sensor Life: 2 Years
CL2: 0-50PPM Display: 1.77 Inch LCD Display
Dimensions: 231x87x60mm T(90): <30S
Weight: 680g Working Time: 8 Hours
38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดแก�ส
