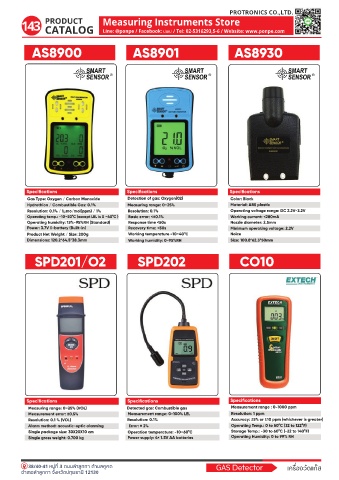

Page 152 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
143 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

AS8900 AS8901 AS8930

Specifications Specifications Specifications
Gas Type: Oxygen / Carbon Monoxide Detection of gas: Oxygen(02) Color: Black
Hydrothion / Combustible Gas: 0.1% Measuring range: 0~25% Material: ABS plastic
Resolution: 0.1% / 1 mo/mol(ppm) / 1% Resolution: 0.1% Operating voltage range: DC 2.2V-3.2V
Operating temp.: -10~50°C (except LEL is 0 ~40°C ) Basic error: <±0.1% Working current: <280mA
Operating humidity: 15%-95%RH (Standard) Response time <50s Nozzle diameter: 2.5mm
Power: 3.7V li-battery (Built-in) Recovery time: <50s Minimum operating voltage: 2.2V
Product Net Weight / Size: 200g Working temperature -10~40°C Noice
Dimensions: 120.2*64.5*38.3mm Working humidity: 0-95%RH Size: 100.8*62.3*50mm

SPD201/O2 SPD202 CO10

Specifications Specifications Specifications
Measuring range: 0~25% (VOL) Detected gas: Combustible gas Measurement range : 0-1000 ppm
Measurement error: ±0.5% Measurement range: 0-100% LEL Resolution: 1 ppm
Resolution: 0.1 % (VOL) Resolution: 0.1% Accuracy: ±5% or ±10 ppm (whichever is greater)
Alarm method: acoustic-optic alarming Error: ± 2% Operating Temp.: 0 to 50°C (32 to 122°F)
Single package size: 30X20X10 cm Operation temperature: -10~60°C Storage Temp.: -30 to 60°C (-22 to 140°F)
Single gross weight: 0.700 kg Power supply: 4× 1.5V AA batteries Operating Humidity: 0 to 99% RH

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดแก�ส
