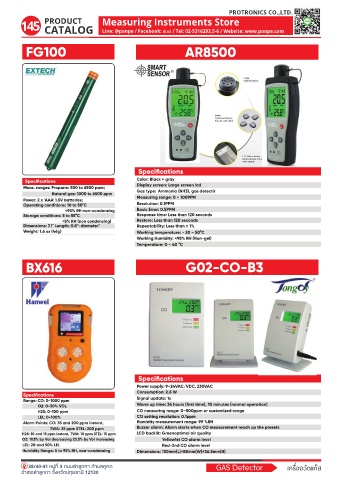

Page 154 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
145 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

FG100 AR8500

Specifications
Specifications Color: Black + gray
Meas. ranges: Propane: 500 to 6500 ppm; Display screen: Large screen lcd
Natural gas: 1000 to 6500 ppm Gas type: Ammonia (NH3), gas detectir
Power: 2 x 'AAA' 1.5V batteries; Measuring range: 0 ~ 100PPM
Operating conditions: 10 to 50°C Resolution: 0.1PPM
<95% RH non-condensing Basic Error: 0.5PPM
Storage conditions: 5 to 55°C Response time: Less than 120 seconds
<5% RH (non condensing) Restore: Less than 120 seconds
Dimensions: 7.1" Length; 0.8": diameter" Repeatability: Less than ± 1%
Weight: 1.6 oz (46g) Working temperature: - 20 ~ 50°C
Working Humidity: <95% RH (Non-gel)
Temperature: 0 ~ 40 °C

BX616 G02-CO-B3

Specifications
Power supply: 9~24VAC/VDC, 230VAC
Consumption: 2.8 W
Specifications
Range: CO: 0-1000 ppm Signal update: 1s
O2: 0-30% VOL Warm up time: 36 hours (first time), 10 minutes (normal operation)
H2S: 0-100 ppm CO measuring range: 0~500ppm or customized range
LEL: 0-100% CO setting resolution: 0.1ppm
Alarm Points: CO: 35 and 200 ppm instant, Humidity measurement range: 99 %RH
TWA: 35 ppm STEL: 200 ppm Buzzer alarm: Alarm starts when CO measurement reach up the presets
H2S: 10 and 15 ppm instant, TWA: 10 ppm STEL: 15 ppm LCD backlit: Greenoptimal air quality
O2: 19.5% by Vol decreasing 23.5% by Vol increasing Yellow1st CO alarm level
LEL: 20 and 50% LEL Red-2nd CO alarm level
Humidity Range: 5 to 95% RH, non-condensing Dimensions: 130mm(L)×85mm(W)×36.5mm(H)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดแก�ส
