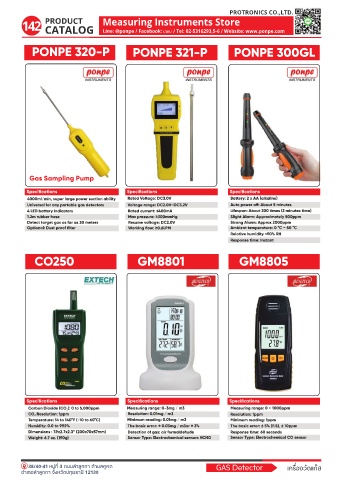

Page 151 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
142 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 320-P PONPE 321-P PONPE 300GL

Ga s S ampling Pump
Gas Sampling Pump
Specifications Specifications Specifications
4000ml/min, super large power suction ability Rated Voltage: DC3.0V Battery: 2 x AA (alkaline)
Universal for any portable gas detectors Voltage range: DC2.0V~DC3.2V Auto power o : About 5 minutes
4 LED battery indicators Rated current: ≤400mA Lifespan: About 200 times (2 minutes time)
1.2m rubber hose Max pressure: ≥300mmHg Slight Alarm: Approximately 500ppm
Detect target gas as far as 30 meters Resume voltage: DC2.0V Strong Alarm: Approx 2000ppm
Optional: Dust proof filter Working flow: ≥0.6LPM Ambient temperature: 0 °C ~ 50 °C
Relative humidity <90% RH
Response time: Instant

CO250 GM8801 GM8805

Specifications Specifications Specifications
Carbon Dioxide (CO ): 0 to 5,000ppm Measuring range: 0-3mg / m3 Measuring range: 0 ~ 1000ppm
CO Resolution: 1ppm Resolution: 0.01mg / m3 Resolution: 1ppm
Temperature: 14 to 140°F (-10 to 60°C) Minimum reading: 0.01mg / m3 Minimum reading: 1ppm
Humidity: 0.0 to 99.9% The basic error: ± 0.03mg / m3or ± 3% The basic error: ± 5% (F.S), ± 10ppm
Dimensions : 7.9x2.7x2.3” (200x70x57mm) Detection of gas: air formaldehyde Response time: 60 seconds
Weight: 6.7 oz. (190g) Sensor Type: Electrochemical sensors HCHO Sensor Type: Electrochemical CO sensor

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดแก�ส
