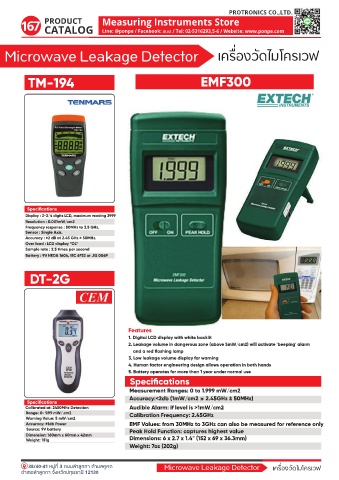

Page 176 - PONPE Catalogs 2022
P. 176

PROTRONICS CO.,LTD.
        167                          Measuring Instruments Store
                                     Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com




   Microwave Leakage Detector                                                 เครื่องวัดไมโครเวฟ


           TM-194                                                       EMF300



























           Specifications
          Display : 3-3/4 digits LCD, maximum reading 3999
          Resolution : 0.001mW/cm2
          Frequency response : 50MHz to 3.5 GHz.
          Sensor : Single Axis.
          Accuracy : ±2 dB at 2.45 GHz ± 50MHz.
          Over load : LCD display “OL”
          Sample rate : 2.5 times per second
          Battery : 9V NEDA 1604, IEC 6F22 or JIS 006P

            DT-2G











                                              Features
                                              1. Digital LCD display with white backlit
                                              2. Leakage volume in dangerous zone (above 5mW/cm2) will activate 'beeping' alarm
                                                and a red flashing lamp
                                              3. Low leakage volume display for warning
                                              4. Human factor engineering design allows operation in both hands
                                              5. Battery operates for more than 1 year under normal use
                                               Specifications

                                              Measurement Ranges: 0 to 1.999 mW/cm2
                                              Accuracy:<2db (1mW/cm2 @ 2.45GHz ± 50MHz)
           Specifications
          Calibrated at: 2450MHz Detection     Audible Alarm: if level is >1mW/cm2
          Range: 0- 9.99 mW/.cm2              Calibration Frequency: 2.45GHz
          Warning Value: 5 mW/cm2
          Accuracy: ±1db Power                 EMF Values: from 30MHz to 3GHz can also be measured for reference only
          Source: 9V battery                   Peak Hold Function: captures highest value
          Dimension: 160mm x 60mm x 42mm
          Weight: 151g                         Dimensions: 6 x 2.7 x 1.4" (152 x 69 x 36.3mm)
                                               Weight: 7oz (202g)
