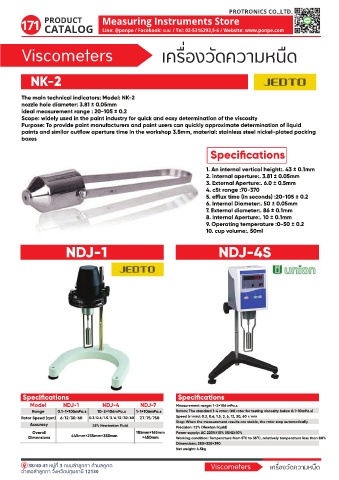

Page 180 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
171 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Viscometers เครื่องวัดความหนืด

NK-2

The main technical indicators: Model: NK-2
nozzle hole diameter: 3.81 ± 0.05mm
ideal measurement range : 20-105 ± 0.2
Scope: widely used in the paint industry for quick and easy determination of the viscosity
Purpose: To provide paint manufacturers and paint users can quickly approximate determination of liquid
paints and similar outflow aperture time in the workshop 3.5mm, material: stainless steel nickel-plated packing
boxes
Specifications

1. An internal vertical height:. 43 ± 0.1mm
2. internal aperture:. 3.81 ± 0.05mm
3. External Aperture:. 6.0 ± 0.5mm
4. cSt range :70-370
5. e ux time (in seconds) :20-105 ± 0.2
6. Internal Diameter:. 50 ± 0.05mm
7. External diameter:. 86 ± 0.1mm
8. Internal Aperture:. 10 ± 0.1mm
9. Operating temperature :0-50 ± 0.2
10. cup volume:. 50ml

NDJ-1 NDJ-4S

Specifications Specifications
Model NDJ-1 NDJ-4 NDJ-7 Measurement range: 1~2×106 mPa.s
Range 0.1-1×105mPa.s 10-2×106mPa.s 1-1×106mPa.s Rotors: The standard 1-4 rotor; (#0 rotor for testing viscosity below 0.1~10mPa.s)
Rotor Speed (rpm) 6/12/30/60 0.3/0.6/1.5/3/6/12/30/60 7.7/75/750 Speed (r/min): 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 r/min
Stop: When the measurement results are stable, the rotor stop automatically
Accuracy ±5% Newtonian Fluid Precision: ±2% (Newton liquid)
Overall 185mm×165mm Power supply: AC 220V±10% 50HZ±10%
Dimensions 445mm×235mm×380mm ×450mm Working condition: Temperature from 5°C to 35°C, relatively temperature less than 80%
Dimensions: 280×320×390
Net weight: 4.5kg
