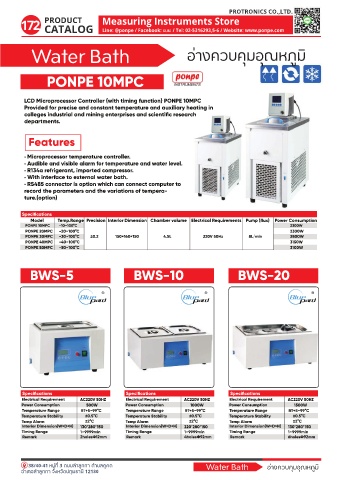

Page 181 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
172 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Water Bath อ�างควบคุมอุณหภูมิ

PONPE 10MPC

LCD Microprocessor Controller (with timing function) PONPE 10MPC
Provided for precise and constant temperature and auxiliary heating in
colleges industrial and mining enterprises and scientific research
departments.

Features

• Microprocessor temperature controller.
• Audible and visible alarm for temperature and water level.
• R134a refrigerant, imported compressor.
• With interface to external water bath.
• RS485 connector is option which can connect computer to
record the parameters and the variations of tempera-
ture.(option)

Specifications
Model Temp.Range Precision Interior Dimension Chamber volume Electrical Requirements Pump (flux) Power Consumption
PONPE 10MPC -10~100°C 2300W
PONPE 20MPC -20~100°C 2300W
PONPE 30MPC -30~100°C ±0.2 150×160×150 4.5L 220V 50Hz 8L/min 2800W
PONPE 40MPC -40~100°C 3150W
PONPE 50MPC -50~100°C 3100W

BWS-5 BWS-10 BWS-20

Specifications Specifications Specifications
Electrical Requirement AC220V 50HZ Electrical Requirement AC220V 50HZ Electrical Requirement AC220V 50HZ
Power Consumption 500W Power Consumption 1000W Power Consumption 1500W
Temperature Range RT+5~99°C Temperature Range RT+5~99°C Temperature Range RT+5~99°C
Temperature Stability ±0.5°C Temperature Stability ±0.5°C Temperature Stability ±0.5°C
Temp Alarm ±2°C Temp Alarm ±2°C Temp Alarm ±2°C
Interior Dimension(W×D×H) 130*280*150 Interior Dimension(W×D×H) 220*280*150 Interior Dimension(W×D×H) 130*280*150
Timing Range 1~9999min Timing Range 1~9999min Timing Range 1~9999min
Remark 2holes 12mm Remark 4holes 92mm Remark 6holes 92mm
