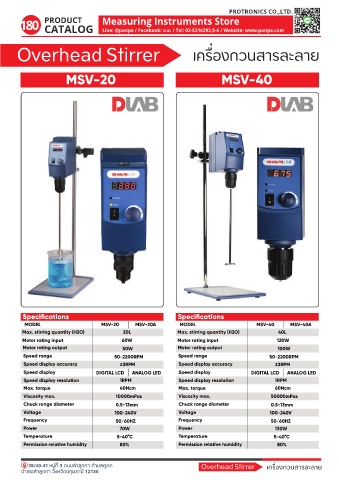

Overhead Stirrer เครื่องกวนสารละลาย

MSV-20 MSV-40

Specifications Specifications
MODEL MSV-20 MSV-20A MODEL MSV-40 MSV-40A
Max. stirring quantity (H2O) 20L Max. stirring quantity (H2O) 40L
Motor rating input 60W Motor rating input 120W
Motor rating output 50W Motor rating output 100W
Speed range 50-2200RPM Speed range 50-2200RPM
Speed display accuracy ±3RPM Speed display accuracy ±3RPM
Speed display DIGITAL LCD ANALOG LED Speed display DIGITAL LCD ANALOG LED
Speed display resolution 1RPM Speed display resolution 1RPM
Max. torque 40Ncm Max. torque 60Ncm
Viscosity max. 10000mPas Viscosity max. 50000mPas
Chuck range diameter 0.5-13mm Chuck range diameter 0.5-13mm
Voltage 100-240V Voltage 100-240V
Frequency 50/60HZ Frequency 50/60HZ
Power 70W Power 130W
Temperature 5-40°C Temperature 5-40°C
Permission relative humidity 80% Permission relative humidity 80%
